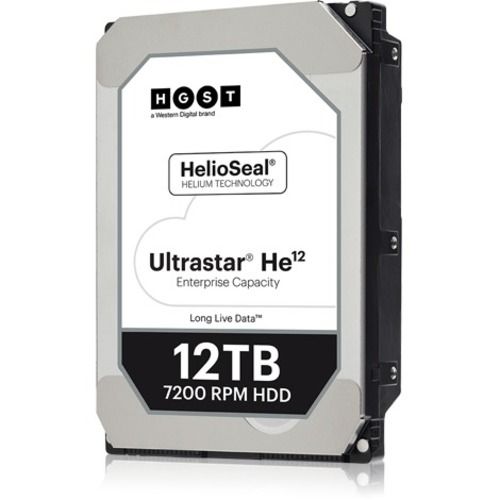

HGST Ultrastar He12 HUH721212AL5204 Hard Drive

Marketing Information

Laying the foundation for a worry-free data center, HGST delivers capacity to conquer the data explosion - Ultrastar® He12 HDD. Designed to handle workloads up to 550TB per year, the Ultrastar He12 HDD is the industry's first 12TB drive and uses PMR technology to make it drop-in ready for any enterprise-capacity application or environment. The stable internal environment created by fourth-generation HelioSeal® technology enables a new 8-disk design, increasing the capacity by 20% when compared to the 7-disk design of the prior generation. This highest capacity helium drive offers the lowest power profile in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the Ultrastar He12 HDD provides the highest reliability rating available of all HDDs on the market today by building on the successful design of it's 10TB, 8TB and 6TB predecessors. Trust HGST and the Ultrastar He12 HDD to deliver more capacity, more efficiency, more reliability and more value to your data center.

Specifications
Manufacturer: Western Digital Corporation
Manufacturer Part Number: 0F29532
Manufacturer Website Address: http://www.wdc.com
Brand Name: HGST
Product Line: Ultrastar
Product Series: He12
Product Model: HUH721212AL5204
Product Name: Ultrastar He12 HUH721212AL5204 Hard Drive
Product Type: Hard Drive
Technical Information
Storage Capacity: 12 TB
Drive Performance
Spindle Speed (rpm): 7200
Buffer: 256 MB
Interfaces/Ports
Drive Interface: SAS
Drive Interface Standard: 12Gb/s SAS
Physical Characteristics
Drive Type: Internal
Form Factor: 3.5"
Height: 26.1 mm
Width: 101.6 mm
Depth: 147 mm
Weight (Approximate): 660 g
Miscellaneous
Device Supported: Storage System
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS) 2
