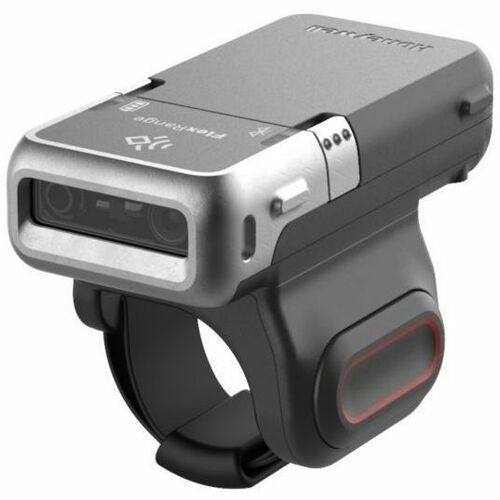

Honeywell 8675i Barcode Scanner

Marketing Information

The Honeywell 8675i provides wearable scanning productivity in a compact, ergonomic, and rugged form factor.

The 8675i offers always-at-hand wearable scanning to improve productivity workflow.

Premium scanning performance ensures quick work of even damaged or low quality barcodes. FlexRange technology provides expanded FlexRange scan distance, enabling improved efficiency in workflows that could previously only be solved with bulkier, heavier handheld devices. Smooth, fast reading from near to far ensures that the full range (100% UPC from near contact to 5'/1.5m, 100 mil Code 39 to 33'/10m) has fast, intuitive scanning response. A standardrange only option offers lower acquisition cost for arms-length workflows.

In all aspects of design, the 8675i has been optimized for ergonomics. Height off of the finger has been minimized to prevent interference in the work environment. All user-contact surfaces have been tailored for comfort, easy adjustment, and simple use. The triggered ring is simple to swap from right to left hand configuration, and the finger strap buckle is both easy to operate and low-profile to prevent interference between fingers. The 8680i can be converted from ring to glove instantly and with no tools; the strap glove is simple, minimal, and easily adjustable to cover the range of users. Made of non-absorbent materials, 8675i wearable accessories are simple to clean with approved disinfectant agents.

The 8675i has been designed to satisfy the needs of demanding workflows. It is multi-shift ready, with an easy-to-replace battery to keep the scanner up and running that also enables the battery to be simply replaced as it ages through normal use, extending the service life of the 8675i. User-facing LEDs communicate Bluetooth connection, battery state of charge and even when battery health requires a replacement.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 8675I400FR2R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: 8675i
Product Name: 8675i Barcode Scanner
Packaged Quantity: 1 / Piece
Product Type: Barcode Scanner
Technical Information
Scanning Capability:

• 1D
• 2D

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern:

• Omni-directional
• Area

Scanner Range: FlexRange
Scanning Distance: 9.84 m
Features: Ergonomic Design
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Drop Specification:

1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature 50x 1.5m (5 ft) to concrete at operating temperature

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 2.54 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 2.54 mm
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 570 mAh
Battery Weight: 19 g
Maximum Battery Recharge Time: 3.50 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Wearable
Rugged: Yes
Color Family: Black
Product Color: Black
Height: 15.2 mm
Width: 30.3 mm
Length: 65.2 mm
Weight (Approximate): 66 g
Miscellaneous
Package Contents:

• 1 x 8675i Barcode Scanner Kit
• 1 x Triggered Ring
• 1 x Battery

Ingress Protection (IP) Rating: IP65
Application/Usage: Warehouse
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:

Battery warranty is one year
