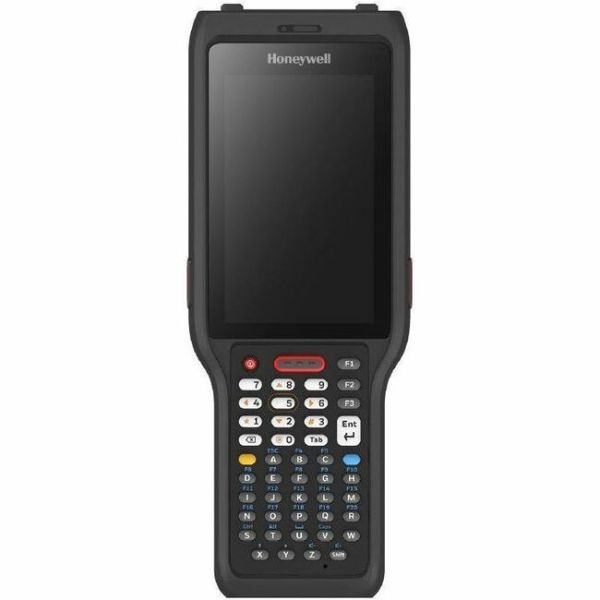

Honeywell CK62 Handheld Terminal

Marketing Information

The CK62 is a lightweight rugged mobile computer designed for warehouse and distribution center environments. The CK62 provides reliable data access and data entry with its carefully designed keypads. Equipped with 5G cellular and Wi-Fi 6E capabilities, the CK62 ensures high-speed connectivity, which promotes productivity across different workflows and applications.

The Honeywell CK62 is a 5G and Wi-Fi 6E enabled warehouse solution. Its rugged design is suitable for warehouse environments. Its' improved ergonomics design has both alpha-numeric and function-numeric keypads for versatile data input. It is featured with Qualcomm 4490 octa-core processor for best performance and product longevity. In the meantime, it supports 5G ...and Wi-Fi 6E for fast and reliable connectivity.

Mobility Edge - Powerful & Secure Platform

The CK62 leverages the Mobility Edge™ platform which offers durability, stability, security and long-term life cycle availability. It supports Android versions 14 through 181, thereby providing a secure and open operating system to integrate with a wide range of applications. When coupled with Honeywell's Operational Intelligence asset management software, it provides users with critical analytics that allows ease of device management, optimal productivity, all while reducing total cost of ownership (TCO).

Reliable Under Harsh Conditions

Designed to endure the challenges of warehouse operations, the CK62 boasts an IP65 rating for dust and water resistance. It can withstand drops from 1.8 meters and 3000 tumbles, ensuring durability under harsh usage conditions.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: CK62-X00-57S1ACG
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: CK62
Product Name: CK62 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wired/Wireless
Scanning Capability:

• 1D
• 2D

Light Source: Laser
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Accelerometer
• Gyroscope
• Compass
• Hall Effect Sensor

Multi-SIM Supported: Yes
Number of SIM Card Supported: 1
SIM Size Supported: Nano/eSIM
Features:

• Corning Gorilla Glass
• Vibration Resistant
• Tumble Proof

Drop Specification:

Multiple 1.8 m (6 ft) drop to concrete per MIL-STD-810H crossing temperature (-10°C to +50°C/ 14°F to +122°F)

Illumination Type: LED
Illumination Color: Red
Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Model: QCM4490
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 8 GB
Flash Memory: 128 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 10.2 cm (4")
Screen Mode: WVGA
Screen Resolution: 480 x 800
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Keyboard Type: Alphanumeric
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Cellular Network Supported:

• GSM
• WCDMA

Cellular Data Connectivity Technology:

• 5G
• 4G
• 3G
• 2G

Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 14
Upgradable Operating System: Android 18
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 7000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.60 V
Maximum Battery Recharge Time: 3.50 Hour
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Gun
Height: 27 mm
Width: 78 mm
Length: 206 mm
Weight (Approximate): 440 g
Miscellaneous
Application/Usage:

• Warehouse
• Distribution

Ingress Protection (IP) Rating: IP65
