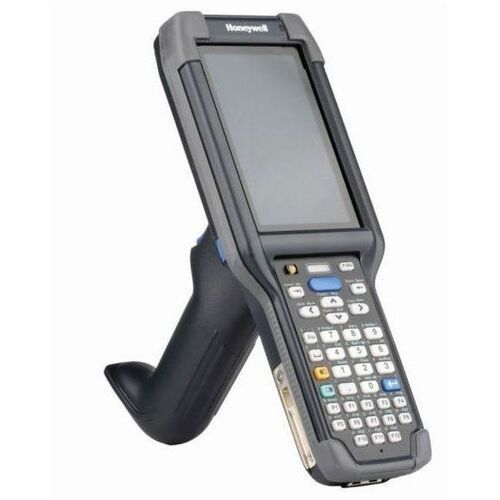

Honeywell CK65 Mobile Computer

Marketing Information

The industry's most advanced ultra-rugged mobile computer that's ready for the toughest DC environments and the broadest range of workflows, the CK65 is designed to maximize worker productivity and minimize Total Cost of Ownership.

In this environment of ever smaller orders and ever shrinking delivery timeframes, you need ways to improve your inventory accuracy and order cycle time. The CK65 is purpose-built to help with those objectives by maximizing worker productivity. The perfect blend of keypad and touchscreen, ergonomics and durability, the CK65 is light enough to be used all day yet durable enough to withstand the wear and tear of daily use. And with a 7,000 mAh extended smart battery, the CK65 is capable of up to 28 ho...urs of continuous operation, so workers finding themselves with a dead battery in the middle of their shift will be a thing of the past.

Built on the Mobility Edge™ platform, the CK65 minimizes TCO like no other product on the market by future-proofing your investment with support through Android R and beyond, and accelerated provisioning to minimize your time to value. And with its ultrarugged design that can withstand 3 m (10 ft) drops to concrete as well as being rated to IP65 and IP68, the CK65 is durable in even the toughest DC environments. The CK65 even offers cold storage models for freezer environments and non-incendive (NI)/ATEX models for areas with hazardous gases.

Honeywell's legacy of imaging innovation continues on the CK65 with the new FlexRange™ XLR imager. The FlexRange XLR is capable of scanning from 3 inches (7.6 cm) all the way out to 80 feet (24.3 m), at lightning fast speeds, and in a slim form factor. From picking to the pallet to the rack, from broad daylight to dark warehouse lighting, and even with damaged barcodes, the FlexRange XLR is perfect for any workflow.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: CK65L0NDSN210E
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: CK65
Product Name: CK65 Mobile Computer
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: N6703
Image Sensor Type: Imager
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Accelerometer
• Gyroscope
• Hall Effect Sensor
• High-G Accelerometer

Features:

• Water Resistant
• Gorilla Glass 5
• VoIP
• Push-to-talk
• Non Incendive

Drop Specification:

• 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range

Processor & Chipset
Processor Type: Snapdragon
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• SDXC
• SDHC
• SDIO

Display & Graphics
Screen Size: 10.2 cm (4")
Screen Resolution: 480 x 800
Display Screen Type: LCD
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Number of Keys: 38
Keyboard Type: Numeric
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Software
Operating System: Android 10
Upgradable Operating System: Android 14
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 7000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Maximum Battery Run Time: 28 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Rugged: Yes
Weight (With Battery): 498 g
Miscellaneous
Package Contents:

• CK65 Mobile Computer
• Battery

Application/Usage:

• Distribution
• Manufacturing
• Warehouse
• Industrial

Ingress Protection (IP) Rating:

• IP65
• IP68
• IP64

Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

One-year limited factory warranty
