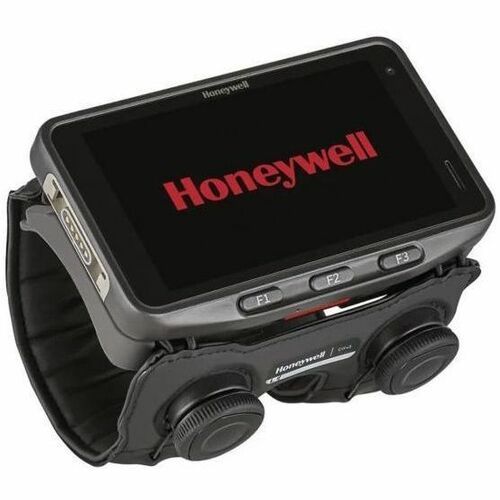

Honeywell CW45 Wearable Computer

Marketing Information
The CW45 wearable mobile computer brings optimized ergonomics and performance to arm-worn applications. Comfortable, powerful, compact, durable, and easy to use, the CW45 provides maximum solution return on investment.

The CW45 wearable computer is a rugged performance tool that improves productivity by ergonomically presenting the workflow information at the point of activity and integrating the tools needed to perform the job at hand. Ultra-reliable performance, data connectivity, and communications for frontline mobile workers in warehouse/DC, retail, logistics, and manufacturing is always where it is needed, when it is needed. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low profile, large 4....7 inch HD display, enterprise-level ruggedness, and comfortable, easy-to-wear accessories. The CW45 is designed for businesses that invest in sophisticated solutions and want a durable, stable, secure platform on which to implement them. Built on the newest generation of Honeywell's Mobility Edge™ platform, the CW45 delivers the lifecycle, security, and durability to optimize solution return on investment in the long term.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: CW45X0NAND10XG
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: CW45
Product Name: CW45 Wearable Computer
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Sensor Type:

• Light Sensor
• Accelerometer
• Gyroscope
• eCompass
• G-sensor

Features:

• Water Resistant
• Gorilla Glass 5
• VoIP
• Push-to-talk

Drop Specification:

• Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H

Processor & Chipset
Processor Core: Octa-core (8 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 6 GB
Flash Memory: 64 GB
Display & Graphics
Screen Size: 11.9 cm (4.7")
Screen Mode: HD
Screen Resolution: 1280 x 720
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Buttons & Keys:

F1, F2, and F3 keys along the bottom edge of the device. Default functions are Volume up, Volume down, and Enter. Reprogrammable by application.

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.1 BLE
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 8 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 12
Software Supported:

• Honeywell Mobility Edge Utilities
• Demos

Power Description
Power Source: Battery
Battery Information
Battery Capacity: 6800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.60 V
Maximum Battery Recharge Time: 6.50 Hour
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Wearable
Rugged: Yes
Weight (With Battery): 328 g
Miscellaneous
Application/Usage:

• Retail
• Logistics
• Manufacturing
• Warehouse

Ingress Protection (IP) Rating:

• IP65
• IP67

Warranty
Additional Warranty Information:

One-year factory warranty
