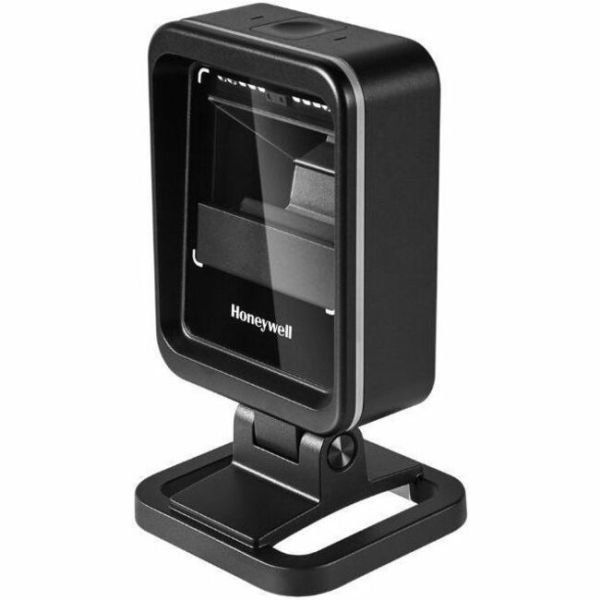

Honeywell Genesis XP 7680g Barcode Scanner Kit

Marketing Information

The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity.

BIG VALUE IN A SMALL PACKAGE

Increased Productivity

The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell's field proven XP scanning technology handles poorly printed and damaged barcodes with ease. Impressive depth of field allows barcodes to be read even if placed right at the face of the scanner.

Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping empl...oyees productive and efficient.

Fantastic User Experience

The compact and modern design offers a contemporary experience with minimal counter space required. The 360° tri-color LED ring highlights the scanning target area and provides clear user feedback, offering an intuitive experience for both employees and customers.

The scanning user experience is a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye. The automatic object detection feature turns the illumination completely off between scans, so the scanner is not a distraction.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 7680GSR2USB1R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Genesis XP
Product Model: 7680g
Product Name: Genesis XP 7680g Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

Reads standard 1D, 2D, PDF, 2D, Dotcode symbologies, Digimarc supported

Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area
Scanning Distance: 251.46 mm
Features: Beep
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Motion Tolerance: 4013.20 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

50 drops @ 1.5 m

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Color: White
Interfaces/Ports
Host Interface:

• USB
• Serial
• Keyboard Wedge
• IBM 46XX

Power Description
Maximum Operating Power Consumption: 2.50 W
Input Current: 500 mA
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Hands-free
Rugged: Yes
Color Family: Black
Product Color: Black
Height: 105 mm
Width: 40 mm
Length: 80 mm
Weight (Approximate): 340 g
Miscellaneous
Package Contents:

• Genesis XP 7680g Barcode Scanner Kit
• USB Type A 3m straight cable
• Stand

Ingress Protection (IP) Rating: IP52
Application/Usage: Healthcare
Warranty
Limited Warranty: 3 Year
