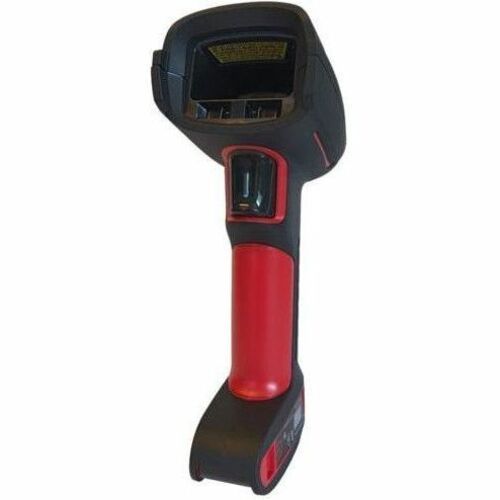

Honeywell Granit XP 1991iXR Barcode Scanner Kit

Marketing Information

Following a legacy of successful deployments, the next generation Granit XP scanners expand capabilities and redefine ultra-rugged scanning.

With an ultra-rugged 3 meter (10 foot) drop, Granit XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks.

The 1 meter (3.3 foot) tumble test indicates lasting durability with daily knocks and drops from workstations or waist height. A grueling 7,000 tumble specification ensures Granit scanners are ready to work long-term in demanding environments. With Honeywell FlexRange technology, Granit XP XR models offer an ideal blend of no-sacrifice near-field scanning plus the expanded range to read UPCs at 1.5 m (5 ft) and 100 mil (2....54 mm) rack labels at 10 m (33 ft), addressing many warehouse, distribution center and manufacturing workflows.

Field feedback shows that the scan window is a high-frequency failure point for scanning devices in the industrial environment. Granit scanners are designed with a small, deeply recessed, scratch- and impact-resistant window to prevent these failures. This is a critical sealing component ensuring dust and moisture do not enter the case and degrade scanning performance or cause premature failure. The Granit solution ensures its IP67 sealing remains intact, even under harsh treatment.

Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse, DC and industrial environments due to low quality printing or damage during handling. Granit XP is built on Honeywell's next-generation imaging platform, integrating a high-resolution sensor and enhanced decoding algorithms to quickly and accurately read barcode symbols. Granit XP ensures that otherwise challenging labels do not create a bottleneck in the process.

The cordless Granit XP 1991iXR model offers high-durability, extreme performance scanning for standard and extended range operations. Created for applications where high-speed scanning is needed to maximize productivity and where durability is nonnegotiable for low total cost of ownership, the Granit XP 1991iXR scanner offers the optimal solution.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1991IXR3USB5R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Granit XP
Product Model: 1991iXR
Product Name: Granit XP 1991iXR Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

• Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies

Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Extended Range
Scanning Distance: 10.06 m
Features:

• Vibration
• Beep
• Notification LED

Cable Type Included: USB
Field of View (Horizontal): 40°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 45°
Reading Angle (Roll): -360°
Motion Tolerance: 4495.80 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

• 2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
• 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
• 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 2.54 mm
Minimum Element Resolution (DataMatrix): 0.15 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Air Electrostatic Discharge (+/-): 20kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• USB
• Serial
• Keyboard Wedge

Power Description
Maximum Operating Power Consumption: 5 W
Standby Current: 120 mA
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2450 mAh
Maximum Battery Run Time: 14 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Colour
Product Color:

• Black
• Red

Durability: Impact Resistant
Height: 100 mm
Width: 76 mm
Length: 192 mm
Weight (Approximate): 405 g
Miscellaneous
Ingress Protection (IP) Rating:

• IP67
• IP65
• IP51

Application/Usage:

• Warehouse
• Industrial
