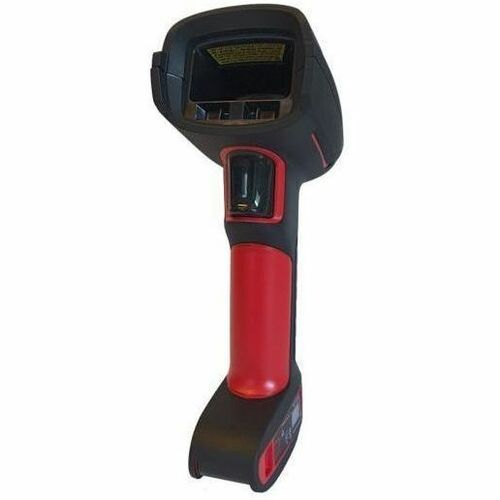

Honeywell Granit XP 1990iXLR Barcode Scanner Kit

Marketing Information

Following a legacy of successful deployments, the next series of Granit™ XP scanners offers enhanced depth of field range.

With Honeywell XLR technology, the Granit XP XLR models offer an ideal blend of no-sacrifice near-field scanning plus the ultra-long range to read UPCs at 2 meters (6.6 feet) and 100 mil (2.5 millimeter) rack labels at 24 meters (79 feet), addressing many warehouse, distribution center and manufacturing workflows. With a 3 meters (10 foot) drop, Granit XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks. An improved 7,000 tumble specification helps to ensure Granit scanners are ready to work long-term in demanding environments.

Granit s...canners are designed with a small, deeply recessed, scratch- and impact-resistant window to help prevent failures. This is a critical sealing component helping to prevent dust and moisture from entering the case and degrade scanning performance or cause premature failure. The Granit solution includes IP67 rating, protecting the device, even under harsh treatment.

Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low-quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse, DC and industrial environments due to low quality printing or damage during handling. Granit XP is built on Honeywell's next generation imaging platform, integrating a high-resolution sensor and enhanced decoding algorithms to read barcode symbols quickly and accurately. Granit XP helps to ensure that otherwise challenging labels do not create a bottleneck in your process

FEATURES AND BENEFITS:

• Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F). Granit XP helps reduce service costs and increases device uptime.
• Granit XP provides extreme performance scanning, even on damaged and low-quality barcodes.
• The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
• The XLR model is ideally suited to far-field scanning operations on 1D and 2D barcodes, plus expanded range scanning of 13 mil UPC up to 2 m (6.6 ft) and 100 mil code 39 to 24 m (79 ft).
• Honeywell Operational Intelligence software delivers on-demand scan insights, supporting higher employee productivity and throughput.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1990IXLR3USBR
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Granit XP
Product Series: 1990iXLR
Product Name: Granit XP 1990iXLR Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

• Reads standard 1D
• PDF
• 2D
• Postal
• Digimarc
• DOT Code
• OCR symbologies

Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Long Range
Scanning Distance: 11.40 m
Features:

• Vibration
• Notification LED
• Beep
• NFC Reader

Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 45°
Reading Angle (Roll): -360°
Motion Tolerance: 4495.80 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

• 2 m (6.5 ft): 50 dops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
• 2.4 m (8 ft): 20 drops at 25°C to 77°C (32°F to 122°F), 55% RH
• 3 m (10ft): MIL-STD-810G, 25°C (77°F), 55% RH

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 2.54 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 2.54 mm
Image Sensor Resolution: 1920 x 1080
Air Electrostatic Discharge (+/-): 20kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: No
Interfaces/Ports
Host Interface:

• Multi-interface
• Serial
• USB
• Keyboard Wedge

Power Description
Maximum Operating Power Consumption: 2.35 W
Input Current: 470 mA
Standby Current: 100 mA
Environmental Conditions
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Colour
Product Color:

• Black
• Red

Durability:

• Dust Resistant
• Dust Proof
• Water Proof
• Water Resistant
• Spill Resistant
• Impact Resistant

Height: 100 mm
Width: 76 mm
Length: 192 mm
Weight (Approximate): 320 g
Miscellaneous
Package Contents:

• 1 x Granit XP1990iXLR Barcode Scanner
• 1 x USB, Type A

Ingress Protection (IP) Rating:

• IP65
• IP67

Application/Usage:

• Industrial
• Warehouse
• Picking
• Manufacturing
• Distribution

Warranty
Limited Warranty: 3 Year
