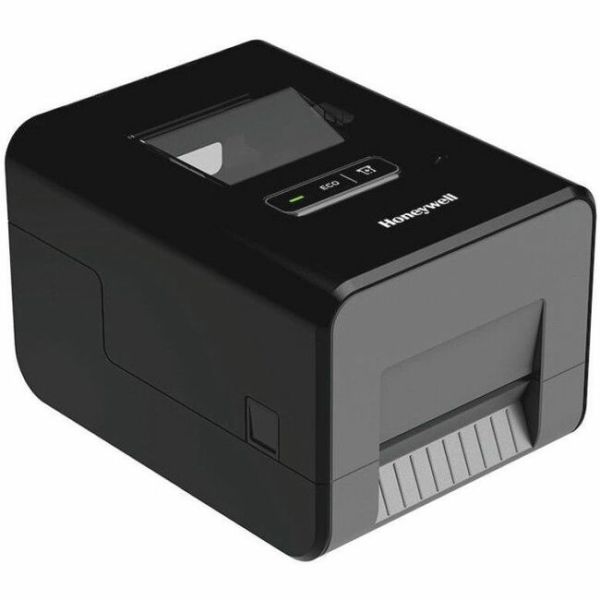

Honeywell PC42E-T 4-inch Desktop Printer

Marketing Information

The Honeywell PC42E-T is a compact, high-speed, and high-resolution desktop printing solution designed for mid-volume printing businesses that require reliable and continuous operation. With its array of intelligent features and user-friendly design, the PC42E-T is well-suited for various industries such as retail, transportation and logistics, light manufacturing, and warehousing.

The PC42E-T desktop printer is compact, reliable, and user-friendly, providing efficient printing performance, easy manageability, and maintenance. It helps maximize productivity and minimize costs, making it ideal for light to medium printing applications in various industries such as retail, warehousing, transportation and logistics, and light manufactur...ing.

Equipped with high-performance print heads offering resolution options of 203 dpi or 300 dpi, the PC42E-T delivers fast and stable high-quality printing with a maximum speed of 6 inches per second. This meets customer demands for enhanced printing accuracy and high-definition labels required for tasks like logistics parcel tracking and marking assets and products.

The PC42E-T includes an ECO button for economy mode that helps reduce label wastage and save calibration waiting time. Its clever design allows easy switching between 0.5 inch and 1inch ribbon cores and enables multiple applications with a single printer.

Connectivity options for the PC42E-T are diverse, catering to different usage scenarios. In addition to built-in ethernet and USB host, the printer supports a host of accessories like cutters, peelers, Wi-Fi/Bluetooth®, and USB to serial cable. The cutter supports enhanced productivity, while the peeler supports various paper types and offers excellent stripping performance. The optional Wi-Fi/Bluetooth module enables easy deployment and management of a large number of printers, reducing the limitations of physical cable connections.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PC42ETB02300
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Model: PC42E-T
Product Name: PC42E-T 4-inch Desktop Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152.40 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Length: 4.83 m
Maximum Print Width: 108 mm (4.25")
Barcode Symbology Supported:

• RSS-14
• QR Code
• POSTNET
• Code 49
• Data Matrix
• AZTEC
• EAN-13
• EAN-8
• Maxi Code
• MSI (Modified Plessey)
• Micro PDF-417
• PDF417
• Code 16K
• Dot Code
• UCC 128
• Grid Matrix
• HIBC Code 39
• HIBC Code 128
• PLANET
• Plessey

Application/Usage:

• Desktop
• Retail
• Transportation & Logistic
• Manufacturing
• Warehouse

Memory
Standard Memory: 128 MB
Flash Memory: 128 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.2 cm (4")
Display Screen Type: LED
Media Types & Handling
Media Type:

• Receipt
• Label

Maximum Label Length: 9.40 mm
Fonts & Emulation
Language Emulation:

• Direct Protocol (DP)
• DPL
• ZSim2
• ZPL II
• XML-enabled for SAP AII & Oracle WMS
• ESim (EPL)

Power Description
Power Source: DC
Environmental Conditions
Operating Temperature: 5°C - 40°C
Operating Relative Humidity: 10% - 80%
Storage Temperature: 4.4°C - 60°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 168 mm
Width: 198 mm
Depth: 273 mm
Weight (Approximate): 2.04 kg
Miscellaneous
Platform Supported: PC
Warranty
Limited Warranty: 1 Year
