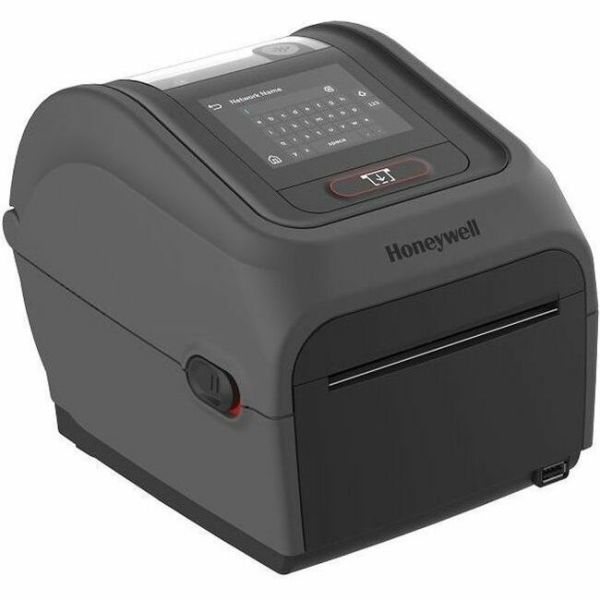

Honeywell PC45D Direct Thermal Printer

Marketing Information

The next generation of desktop printers brings powerful performance, reliable connectivity, and easy integration in a compact design to tackle rapidly changing everyday work environments.

Designed from the successful and advancing proven E-class and PC43 series printers with seamless connectivity, and premium performance and reliability. PC45 offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.

Honeywell Printer Edge™ platform provides a centralized management system for your printer network. Allowing real-time visibility, automated s...oftware updates, and enhanced security. This efficient and cost effective solution for businesses looking to optimize printer operations, Honeywell Printer Edge streamlines workflows and helps reduce downtime, making it easier for you to manage costs

Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtown.

Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PC45D020000200
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Series: PC45
Product Model: PC45D
Product Name: PC45D Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 203.20 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 107.95 mm (4.25")
Barcode Symbology Supported:

• 2D
• QR Code

Real Time Clock: Yes
Application/Usage:

• Desktop
• Packaging Label

Features: Self Strip Module
Connectivity Technology: Wireless
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
RFID: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.2 cm (4")
Display Screen Type: LCD
Cutter
Cutter: Yes
Media Types & Handling
Media Type:

• Gap
• Notch
• Black Mark
• Continuous Label
• Label
• Linered Label
• Receipt
• Wristband
• Tag
• Linerless Label

Media Sensor: Paper Low Sensor
Media Thickness: 160 µm
Maximum Roll Diameter: 12.70 mm
Maximum Label Width: 118 mm
Fonts & Emulation
Language Emulation:

• Fingerprint
• IPL
• ZSim2
• ZPL II
• DPL
• XML
• Direct Protocol (DP)

Power Description
Power Source: AC Supply
Frequency:

• 50 Hz
• 60 Hz

Environmental Conditions
Operating Temperature: 45°C
Storage Temperature: 20°C - 70°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 215.6 mm
Width: 181.3 mm
Depth: 168 mm
Weight (Approximate): 1.80 kg
Miscellaneous
Platform Supported: PC
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
