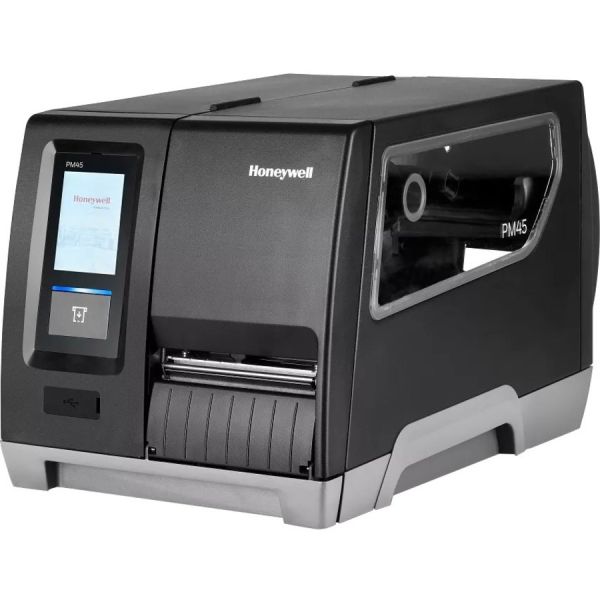

Honeywell PM45 Direct Thermal Printer

Marketing Information
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small el...ectronic components and medical device labels.

As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.

Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.

The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PM45A00000000210
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Series: PM45
Product Model: PM45
Product Name: PM45 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 350 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 4.80 m
Maximum Print Width: 107.95 mm (4.25")
Barcode Symbology Supported:

• 1D
• 2D
• UPC/EAN Shipping Container
• UCC/EAN 128 Serial Shipping Container
• POSTNET
• HIBCC
• ISBT-128
• GM1724

Application/Usage: Industrial
Features: Rugged
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Media Types & Handling
Media Type:

• Gap
• Notch
• Black Mark
• Continuous Label
• Label

Maximum Roll Diameter: 213 mm
Maximum Label Width: 114 mm
Fonts & Emulation
Language Emulation:

• Fingerprint
• IPL
• ZSim2
• ZPL II
• DPL
• XML
• Direct Protocol (DP)

Power Description
Power Source: AC Supply
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Operating Temperature: 5°C - 40°C
Operating Relative Humidity: 20% - 85%
Storage Temperature: -20°C - 70°C
Storage Relative Humidity: 5% - 90%
Physical Characteristics
Height: 295 mm
Width: 284 mm
Depth: 483 mm
Weight (Approximate): 13.20 kg
Miscellaneous
Platform Supported: PC
Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 3.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
