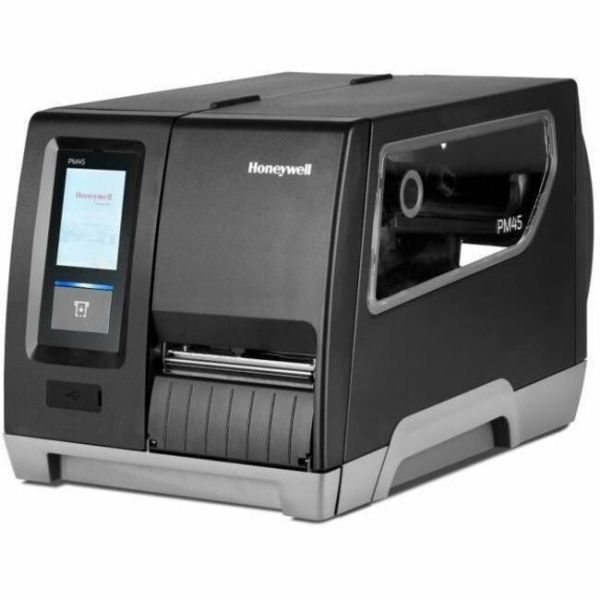

Honeywell PM45C Thermal Transfer Printer

Marketing Information

The Honeywell PM45 series industrial printer is designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The PM45 industrial printer offers high-precision and highvolume printing along with track-and-trace functionality to increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds... of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45 is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

To support your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system whether it's on a local server or the cloud. With the embedded Honeywell software tool Smart Parse, you can quickly change the position, size of objects and barcode, or font type on labels without the need to change the backend system or having any programming skills. Honeywell Operational Intelligence equipped the PM45 printer with the capability of remote management for issues diagnostics and output performance tracking.

The PM45 can support a wide range of media - including ink-in and ink-out ribbons with one-inch core size - enhancing the time between media resupply. With Honeywell's firmware platform that supports multiple print languages, the PM45 printer is an easy replacement for existing Honeywell or mixed printers. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PM45CA1000030200
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Series: PM45
Product Model: PM45C
Product Name: PM45C Thermal Transfer Printer
Product Type: Thermal Transfer Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 350 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 4.80 m
Maximum Print Width: 107.95 mm (4.25")
Barcode Symbology Supported:

• 1D
• 2D
• UPC/EAN Shipping Container
• UCC/EAN 128 Serial Shipping Container
• POSTNET
• HIBCC
• ISBT-128
• GM1724

Application/Usage: Industrial
Features: Rugged
Connectivity Technology: Wireless
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Bluetooth: Yes
Display & Graphics
Display Screen: Yes
Display Screen Type: LCD
Media Types & Handling
Media Type:

• Gap
• Notch
• Black Mark
• Continuous Label
• Label
• Roll Fed
• Fanfold
• Linered Media

Media Sensor:

• Label Taken Sensor
• Ribbon Low/End Sensor
• Head Open Sensor

Maximum Roll Diameter: 152 mm
Maximum Label Width: 114 mm
Fonts & Emulation
Language Emulation:

• Fingerprint
• IPL
• ZSim2
• ZPL II
• DPL
• XML
• Direct Protocol (DP)

Power Description
Power Source: AC Supply
Frequency:

• 50 Hz
• 60 Hz

Environmental Conditions
Operating Temperature: 5°C - 40°C
Operating Relative Humidity: 20% - 85%
Storage Temperature: 20°C - 70°C
Storage Relative Humidity: 5% - 90%
Physical Characteristics
Height: 181 mm
Width: 253 mm
Depth: 432 mm
Weight (Approximate): 12.60 kg
Miscellaneous
Platform Supported: PC
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
