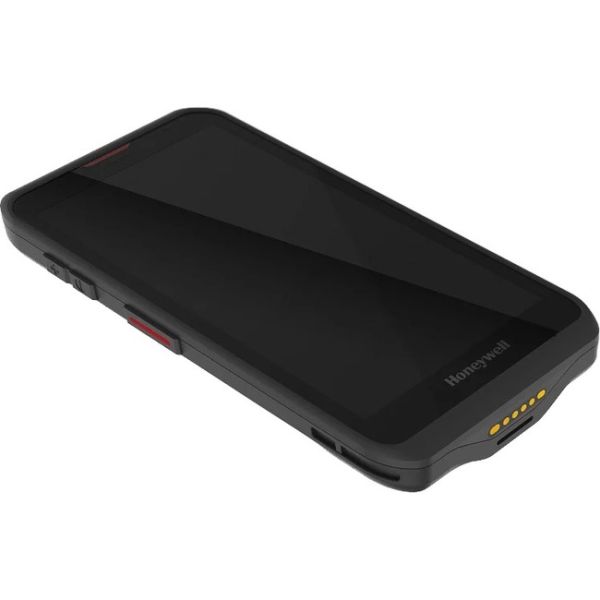

Honeywell EDA52 Handheld Computer

Marketing Information

ScanPal EDA52 is Honeywell's next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.

A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.

The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.

The EDA...52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.

Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.

The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.

The EDA52 is built on Android 11 and can be upgraded to Android 13 minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: EDA52-11AE34N21RK
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: ScanPal
Product Model: EDA52
Product Name: EDA52 Handheld Computer
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: S0703
Image Sensor Type: Imager
Features: Gorilla Glass 5
Processor & Chipset
Processor Type: Snapdragon
Processor Core: Octa-core (8 Core)
Processor Speed: 1.80 GHz
Memory
Standard Memory: 3 GB
Flash Memory: 32 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 14 cm (5.5")
Screen Mode: HD
Screen Resolution: 1440 x 720
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Number of Keys: 5
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.1
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology: 4G LTE
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 11
Battery Information
Battery Capacity: 4500 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.80 V
Removable Battery: Yes
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Weight (Approximate): 258 g
Miscellaneous
Application/Usage:

• Retail
• Transportation
• Logistics
• Manufacturing
• Healthcare

Ingress Protection (IP) Rating: IP67
