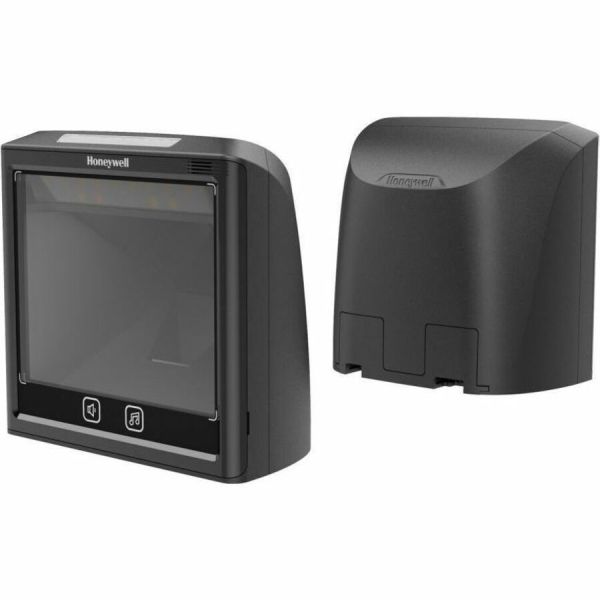

Honeywell Solaris XP 7990G Area-Imaging Vertical Slot Scanner

Marketing Information

The Solaris XP 7990G vertical slot scanner leverages Honeywell's XP platform for high throughput presentation scanning.

ABOUT THE SOLARIS XP 7990G

With a compact, modern design, and powerful imaging capabilities built on Honeywell's extreme performance (XP) platform, the Solaris 7990g fits easily into existing enclosures used in high-volume retail checkout environments such as convenience, drug, specialty, liquor and grocery stores. The Solaris XP features improved snappiness, 4+ m/s motion tolerance, and a wider field of view compared to previous Solaris models. Honeywell's field proven XP technology handles poorly printed and damaged barcodes with ease. The Solaris XP is backwards compatible with previous model...s, making upgrades fast and simple.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 7990G2SERC1
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Solaris XP
Product Model: 7990G
Product Name: Solaris XP 7990G Area-Imaging Vertical Slot Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

• Reads standard 1D, PDF, 2D, Postal and OCR symbologies Note: Decode capabilities dependent on kit configuration

Image Sensor Type: Imager
Depth of Field:

• 10 mm to 140 mm (0.4 in to 5.5 in) @ 5 mil (Code 39)
• 0 mm to 270 mm (0 in to 10.6 in) @ 13 mil (UPC-A)
• 0 mm to 300 mm (0 in to 11.8 in) @ 20 mil (Code 39)
• 20 mm to 140 mm (0.8 in to 5.5 in) @ 6.7 mil (PDF417)
• 15 mm to 190 mm (0.6 in to 7.5 ft) @ 20 mil (DM)
• 0 m to 190 mm (0 in to 7.5 in) @ 20 mil (QR)
• 1D (Code 39): 3 mil 2D (DM): 8.3mil @ Resolution

Scan Pattern: Area
Scanning Distance: 299.72 mm
Cable Type Included: Serial
Field of View (Horizontal): 42°
Field of View (Vertical): 34°
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Motion Tolerance: 6000 mm/s
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.51 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 960
Interfaces/Ports
Host Interface:

• USB
• Serial
• Keyboard Wedge
• IBM 46XX

Power Description
Standby Current: 270 mA
Environmental Conditions
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Hands-free
Height: 148 mm
Width: 152 mm
Depth: 85 mm
Weight (Approximate): 527 g
Miscellaneous
Package Contents:

• 1 x Solaris XP 7990G Area-Imaging Vertical Slot Scanner
• 1 x cable (RS232)
• 1 x power supply unit (EU)

Ingress Protection (IP) Rating: IP53
Application/Usage:

• Retail
• Convenience Store
• Commercial Service

Warranty
Limited Warranty: 3 Year
