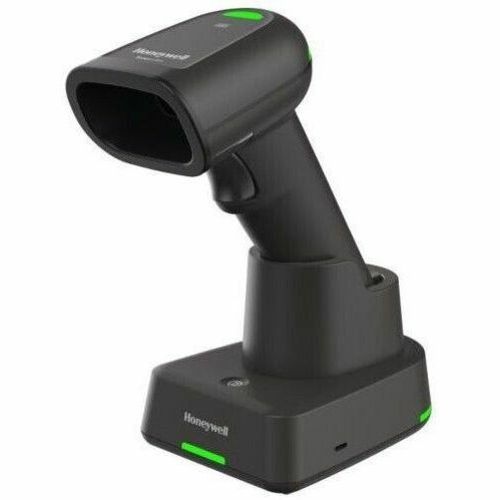

Honeywell 1962G Cordless Bluetooth Handheld Scanner

Marketing Information

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra delivers enhanced scan performance and premium features for retailers.

The Xenon Ultra 1962g incorporates Honeywell's next generation of scanning capability - allowing retailers to stay productive and keep customer service as their top priority.

Freedom of movement around POS terminals, conveyors, and customers is a continued challenge for today's retail associates. As more technology is packed into the streamlined modern-day POS station, free space is at a premium. The Xenon Ultra cordless scanner can help ensure that your associates' attention is kept on maximizing customer experience by eliminating wasted time managing cables and having more space for compl...eting transactions.

One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors instead of a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962g-BF scanner typically provides at least 450 scans without recharging. This makes the scanner ideal for applications such as self-checkout or as a secondary scanner to a bioptic scanner.

FEATURES AND BENEFITS:

• In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
• The Xenon Ultra 1962 battery and battery-free are available in a premium contactless version, helping reduce the number of failed devices due to corrosion.
• Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break may not impact operations upon return.
• The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a batteryfree supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
• Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1962GHD2USBWCR
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Xenon Ultra
Product Model: 1962G
Product Name: 1962G Cordless Bluetooth Handheld Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies

Light Source: LED
Depth of Field:

18 mm - 174 mm (0.71 in - 6.84 in) @ 3 mil Code 39

7 mm - 295 mm (0.29 in - 11.62 in) @ 5 mil Code 39

0 mm - 548 mm (0 in - 21.57 in) @ 10 mil Code 39

0 mm - 502 mm (0 in - 19.77 in) @ 13 mil UPC

0 mm - 345 mm (0 in - 13.6 in) @ 7.5 mil Code 128

0 mm - 563 mm (0 in - 22.17 in) @ 15 mil Code 128

4 mm - 814 mm (0.17 in - 32.07 in) @ 20 mil Code 39

22 mm - 173 mm (0.86 in - 6.82 in) @ 5 mil PDF417

8 mm - 237 mm (0.32 in - 9.32 in) @ 6.7 mil PDF417

35 mm - 113 mm (1.39 in - 4.43 in) @ 5 mil DM

16 mm - 183 mm (0.62 in - 7.19 in) @ 7.5 mil DM

2 mm - 249 mm (0.76 in - 9.8 in) @ 10 mil DM

1 mm - 230 mm (0.05 in - 9.07 in) @ 10 mil QR

0 mm - 392 mm (0 in - 15.43 in) @ 20 mil QR

Scanner Range: High Density
Features:

• Notification LED
• Beep
• Scan Button

Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 4000 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

5Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 1080
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• Keyboard Wedge
• USB
• Serial

Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 160.2 mm
Width: 70.4 mm
Length: 108.2 mm
Miscellaneous
Package Contents:

• 1 x scanner 1962G corded handheld scanner
• 1 x USB Type A 2.7M straight cable (3012-6337-001),
• 1 x Contactless Presentation Charge and Communication base (CCB-U00-G & 1962G-WC-CUP)

Ingress Protection (IP) Rating:

• IP52
• IP41

Application/Usage: Retail
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

• Supercapacitor: 5 year factory warranty
• Lithium-ion Battery Pack: 1 year
