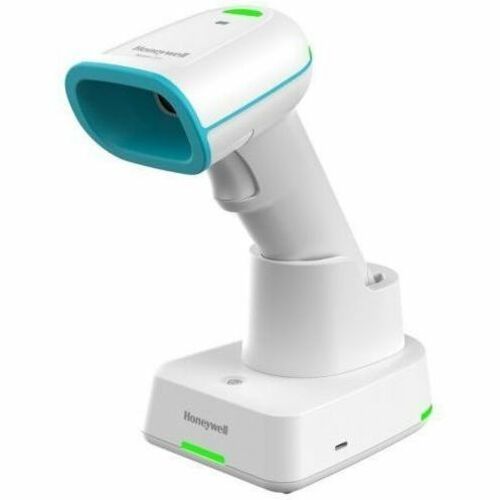

Honeywell 1962H Cordless Bluetooth Handheld Scanner

Marketing Information

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.

The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.

Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a ...continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.

FEATURES AND BENEFITS:

• In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
• The Xenon Ultra 1962 battery and battery-free are available in a premium contactless version, helping reduce the number of failed devices due to corrosion.
• Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break may not impact operations upon return.
• The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
• Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1962HHD5USB5R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Xenon Ultra
Product Model: 1962HHD
Product Name: 1962H Cordless Bluetooth Handheld Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Light Source: LED
Image Sensor Type: Imager
Depth of Field:

18 mm - 174 mm (0.71 in - 6.84 in) 3 mil @ Code 39

7 mm - 295 mm (0.29 in - 11.62 in) 5 mil @ Code 39

0 mm - 548 mm (0 in - 21.57 in) 10 mil @ Code 39

0 mm - 502 mm (0 in - 19.77 in) 13 mil @ UPC

0 mm - 345 mm (0 in - 13.6 in) 7.5 mil @ Code 128

0 mm - 563 mm (0 in - 22.17 in) 15 mil @ Code 128

4 mm - 814 mm (0.17 in - 32.07 in) 20 mil @ Code 39

22 mm - 173 mm (0.86 in - 6.82 in) 5 mil @ PDF417

8 mm - 237 mm (0.32 in - 9.32 in) 6.7 mil @ PDF417

35 mm - 113 mm (1.39 in - 4.43 in) 5 mil @ DM

16 mm - 183 mm (0.62 in - 7.19 in) 7.5 mil @ DM

2 mm - 249 mm (0.76 in - 9.8 in) 10 mil @ DM

1 mm - 230 mm (0.05 in - 9.07 in) 10 mil @ QR

0 mm - 392 mm (0 in - 15.43 in) 20 mil @ QR

Scanner Range: High Density
Features:

• Beep
• Notification LED
• Scan Button

Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 4000 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 1080
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• USB
• Keyboard Wedge
• Serial

Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Red
Product Color: Red
Height: 160.2 mm
Width: 70.4 mm
Length: 108.2 mm
Miscellaneous
Package Contents:

• 1 x scanner 1962H cordless handheld scanner
• 1 x White Anti-microbial housing
• 1 x HD Focus
• 1 x USB Type A 2.7M straight cable (3012-6337-001)
• 1 x Presentation Charge and Communication base (CCB-U00-H & 1962H-BAT-CUP)

Ingress Protection (IP) Rating:

• IP52
• IP41

Application/Usage:

• Hospitality
• Healthcare

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

• Supercapacitor: 5 year factory warranty
• Lithium-ion Battery Pack: 1 year
