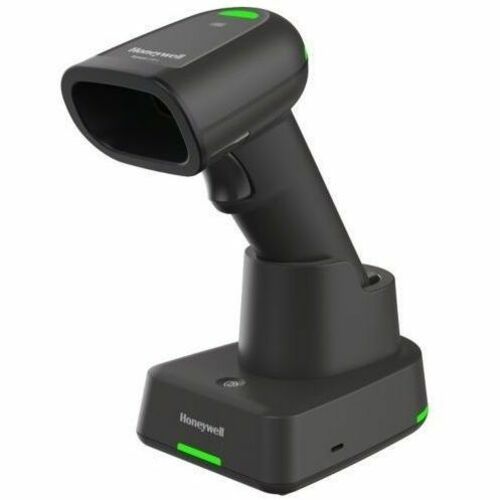

Honeywell XENON ULTRA 1962LI Cordless Bluetooth Handheld Scanner

Marketing Information

As barcodes become more complicated - smaller and denser - light manufacturers need a scanner they can rely on to provide fast and accurate barcode scanning on even the toughest codes.

The Xenon Ultra 1962LI incorporates Honeywell's next generation of scanning capability- allowing uptime and productivity to stay top priority for manufacturers, by capturing both paper and light direct part mark barcodes - even down to 2 mils.

The scanner is engineered to perform equally without sacrificing quality, whether it is deployed in its handheld trigger-mode or presentation mode.

The Xenon Ultra's green dot LED aimer and improved software algorithms make it an ideal tool for light industrial applications. The cordless ...nature of the Xenon Ultra 1962 scanner ensures that workers' attention is kept on maximizing productivity by eliminating wasted time managing cables.

Engineered to withstand 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP52 ingress rating for water and dust, the Xenon Ultra 1962LI delivers stand out durability. This helps significantly reduce scanner downtime and service costs, supporting a longer lifecycle and helping lower total cost of ownership.

FEATURES AND BENEFITS

• Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention helps the scanner to stay securely connected to the CCB if deployed in kinetic conditions.
• Added IR capabilities helps reduce annoying false activations, enabling illumination only on when needed. It also helps to reduce the snappiness gap between point and shoot and hands-free modes of operation.
• Xenon Ultra for light industrial applications has an innovative illumination system enables scanning of most ultra high density mark - regardless of size, surface, marking method or contrast.
• In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
• Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation.

Specifications
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1962LI2USB5R
Manufacturer Website Address: http://www.honeywell.com/sites/uk/
Brand Name: Honeywell
Product Line: Xenon Ultra
Product Model: 1962LI
Product Name: XENON ULTRA 1962LI Cordless Bluetooth Handheld Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

• Reads standard 1D
• PDF
• 2D
• Postal Digimarc
• DOT Code
• OCR

Light Source: LED
Image Sensor Type: Imager
Scan Rate: 1 scan/s
Scan Mode: Trigger
Depth of Field:

5 mm - 74 mm (0.19 in - 2.91 in) @ 2 mil Code 39

0 - 101mm (0 - 3.98in) @ 3 mil Code 39

0 - 127mm (0 - 5in) @ 5 mil Code 39

0 - 225mm (0 - 8.86in) @ 10 mil Code 39

26mm - 198mm (1.02in - 7.8in) @ 13 mil UPC

0 - 130mm (0 - 5.12in) @ 7.5 mil Code 128

24mm - 222m (0.94in - 8.74in) @ 15 mil Code 128

32mm - 360mm (1.26in - 14.17in) @ 20 mil Code 39

11mm - 96mm (0.43in - 3.78in) @ 5 mil PDF417

4mm - 113m (0.16in - 4.45in) @ 6.7 mil PDF417

3mm - 86mm (0.12in - 3.39in) @ 5 mil DM

0 - 110mm (0 - 4.33in) @ 7.5 mil DM

3mm - 123mm (0.12in - 4.84in) @ 10 mil DM

8mm - 111mm (0.31in - 4.37in) @ 10 mil QR

11mm - 179mm (0.43in - 7.05in) @ 20 mil QR

Features:

• Beep
• Scan Button
• Notification LED

Cable Type Included: USB
Field of View (Horizontal): 28°
Field of View (Vertical): 24°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 3400 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification:

Engineered to withstand 50 1.8 m drops to concrete across operating temp range

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.05 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 1080
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface:

• USB
• Keyboard Wedge
• Serial

Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3300 mAh
Maximum Battery Run Time: 22 Hour
Maximum Battery Recharge Time: 4.50 Hour
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Height: 160.2 mm
Width: 70.4 mm
Length: 108.2 mm
Miscellaneous
Package Contents:

• 1 x XENON ULTRA 1962LI Cordless Bluetooth Handheld Scanner
• 1 x USB Type A 2.7M straight cable ,
• 1 x Presentation Charge and Communication base
• 1 x EMEA

Ingress Protection (IP) Rating:

• IP52
• IP41

Application/Usage: Manufacturing
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

• Supercapacitor: 5 year factory warranty
• Lithium-ion Battery Pack: 1 year
