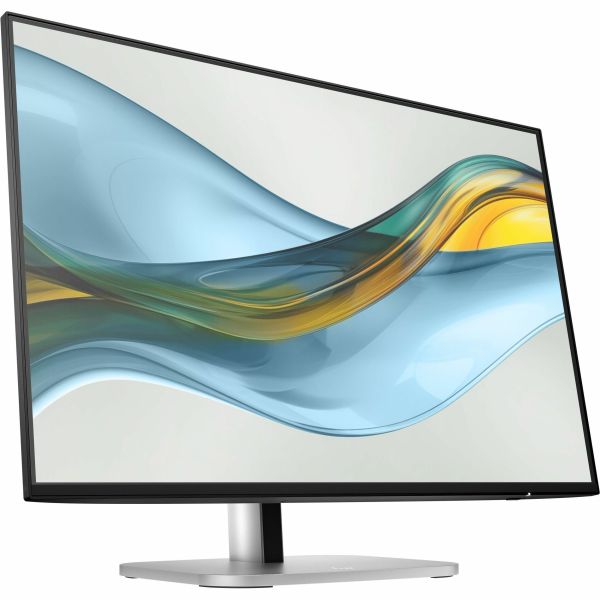

HP Series 5 Pro 24 inch WUXGA Monitor - 524pn (9D9A7AA)

Marketing Information

Wherever you work, get more out of it with refined visual clarity and adjustable comfort built into a sleek, modern design.

• Display size (diagonal): 61 cm (24")
• Response time (typical): 5ms GtG (withoverdrive)
• Native resolution: WUXGA (1920 x1200)
• Contrast ratio:1500:1

Elevate your productivity

See more of your work and get more done on this 24" WUXGA resolution monitor. A lightning-fa...st 100 Hz refresh rate brings out every detail. Elevate your view even more by experiencing bright, vibrant, consistent colors with 100% sRGB and HP Progressive WhiteBalance.

Designed to inspire

Change the way you see your desk. See more of your display with the 3-sided borderless with micro-edge bezel design. To get even more done, pair this display with another HP Series 5 Pro 24" WUXGA monitor and adock for the perfect dual displaysetup.

Take control of your comfort

Find a way to feel your best all day with 4-way adjustability optimized by the step-by-step Ergonomic Setup Guide in HP DisplayCenter. Keep your eyes comfortable with HP Eye Ease by reducing blue light without impacting color.

Reimagine what work looks like | 16:10 WUXGA Resolution

Get 11% more screen with WUXGA 1920x1200 resolution and 16:10 aspectratio.

IPS Technology

No matter where you are or sit, IPS technology ensures image accuracy and consistency across wide 178-degrees horizontal and vertical viewingangles.

100 Hz Refresh Rate

With a 100 Hz refresh rate this monitor is capable of clear details, smoothly moving from frame to frame, allowing for fast split-second reactiontime.

More Contrast

See the nuanced differences of color, shadow, and highlights thanks to the enhanced 1500:1 contrastratio.

High Brightness

350 nits of brightness lets you see clearly. Enhance your visual performance for work or simply enjoyingentertainment.

100% sRGB Color Gamut

Enjoy highly accurate colors on screen with 100% sRGB. This HP monitor provides ideal color reproduction with minimaleffort.

Progressive White Balance

Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching fromscreen-to-screen.

Sleek Design, Clean Space

See and do more on your screen with a 3-sided borderless with micro-edge bezel design that maximizes your viewing area for a sleek design and virtually seamless dual-monitor setups.

More Ports. Easily Accessible.

More ports means more capabilities. With HDMI 1.4, DisplayPort™ 1.2, USB-B (upstream), and 4 USB-A 3.2 ports, you can connect multiple devices. Easy rear-facing design makes connecting abreeze.

Endless Adjustability

With 4-way adjustability you can customize pivot, tilt, height adjust, and swivel settings to fit you, your desk, and your needs.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 9D9A7AA#ABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: 5 Pro
Product Model: 524pn
Product Name: Series 5 Pro 24 inch WUXGA Monitor - 524pn (9D9A7AA)
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 61 cm (24")
Screen Mode: WUXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 5ms GTG (OD)
Aspect Ratio: 16:10
Pixel Pitch: 0.27000 mm x 0.27000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable
Backlight Technology: Edge WLED
HDCP Supported: Yes
Features:

• Anti-glare
• Eye Ease
• Progressive Scan
• OnScreen Control
• sRGB
• 3-sided Bezel Less
• Flicker-free
• Low Blue Light
• Security Lock-ready
• Low Halogen
• Wide Viewing Angle
• Dual Monitor Support
• Eye Comfort Technology
• Ergonomic Design
• 25% Haze
• Cable Lock Slot
• Eyesafe Certified 2.0
• PVC Free

Horizontal Frequency: 30 kHz to 130 kHz
Vertical Frequency: 50 Hz to 100 Hz
Adjustable Stand: Yes
Stand Adjustments:

• Swivel
• Height
• Pivot
• Tilt

Glass Hardness: 3H
Active Display Area (H x V): 518 mm x 324 mm
Video
Maximum Resolution: 1920 x 1200
Standard Refresh Rate: 100 Hz
Native Contrast Ratio: 1,500:1
Dynamic Contrast Ratio: 10,000,000:1
Brightness: 350 cd/m²
Color Gamut: 100% sRGB
Pixel Per Inch (PPI): 94
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.4
USB: Yes
DisplayPort: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 5
Number of USB Type-B Ports: 1
Number of DisplayPorts: 1
USB Type-B: Yes
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 5°C to 35°C
Operating Humidity Range: 20% to 80% (Non-condensing)
Non-operating Humidity Range: 5% to 95% (Non-condensing)
Power Description
Operating Power Consumption: 22 W
Standby Power Consumption: 500 mW
Energy Efficiency Class (SDR) (from 1st March 2021): C
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 12 kW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 58 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Jet Black
Stand Color: Silver
Height: 342.9 mm
Width: 532.8 mm
Depth: 47 mm
Height with Stand: 517.50 mm
Width with Stand: 532.80 mm
Depth with Stand: 189.50 mm
Weight with Stand (Approximate): 5.10 kg
Miscellaneous
Energy Star: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Compliance:

• Australia/New Zealand Minimum Energy Performance Standards (MEPS)
• Vietnam Minimum Energy Performance Standards (Vietnam MEPS)
• Korea Minimum Energy Performance Standards (MEPS)

Environmental Compliance: UAE Restriction of Hazardous Substances (UAE RoHS)
