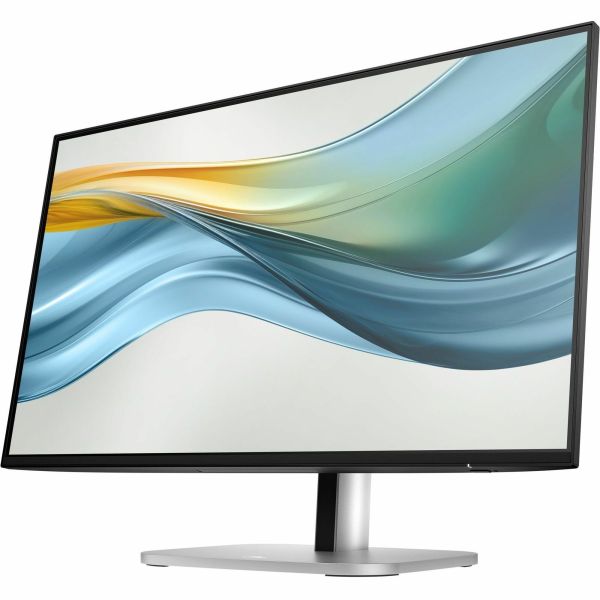

HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu (9D9V7AA)

Marketing Information

Seamlessly connect PCs, peripherals, and displays with enhanced 100W power delivery in a sleek, modern monitor perfectly designed to get work done.

• Display size (diagonal): 60.5 cm (23.8")
• Response time (typical): 5ms GtG (with overdrive)
• Native resolution: FHD (1920 x1080)
• Contrast ratio:1500:1

Your center of productivity

Get more done with your unique hub for unstoppable productivity.... Connect any device with a single USB-C® cable for strong 100W power delivery. See your work elevated in smooth, crisp detail with 100 Hz refresh rate, while also experiencing vibrant, consistent colors with 100% sRGB and HP Progressive White Balance.

Designed to work beautifully together

Transform your space into a seamless workplace. The 3-sided borderless with micro-edge bezel design lets you see more than ever. Daisy-chain another HP Series 5 Pro monitor for a perfect dual display setup with next-level productivity.

Take control of your comfort

Find a way to feel your best all day with 4-way adjustability optimized by the step-by-step Ergonomic Setup Guide in HP Display Center. Keep your eyes comfortable with HP Eye Ease by reducing blue light without impacting color.

Powerfully designed to connect | Progressive White Balance

With a 100 Hz refresh rate this monitor is capable of clear details, smoothly moving from frame to frame, allowing for fast split-second reaction time.

Endless Adjustability

HP Eye Ease is an always-on, low-blue light filter that helps keep your eyes comfortable throughout the day by reducing blue light without impacting color accuracy or adding a yellow color shift.

100 Hz Refresh Rate

See the nuanced differences of color, shadow, and highlights thanks to the enhanced 1500:1 contrast ratio.

Ergonomic Setup Guide

See and do more on your screen with a 3-sided borderless with micro-edge bezel design that maximizes your viewing area for a sleek design and virtually seamless dual-monitor setups.

Single Power On

HP is committed to helping protect our shared future by minimizing the energy our monitors consume to help reduce energy demand. This monitor is held to the highest energy saving standard with an ENERGY STAR® rating and EPEAT® Gold Registration.

HP Display Center

Keep your set up simple and seamless with a display that has everything built in. Connect a keyboard and mouse to the ports on the back of this monitor and only one USB-C® cable to your notebook for data, video, and up to 100W of charging.

IPS Technology

Enjoy highly accurate colors on screen with 100% sRGB. This HP monitor provides ideal color reproduction with minimal effort.

High Brightness

Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching from screen-to-screen.

Remote Management Reimagined

Instantly turn on your display and PC, even when the lid is closed, by pressing the power button on the bottom of the display.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 9D9V7AA#ABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: Series 5 Pro
Product Model: 524pu
Product Name: Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu (9D9V7AA)
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 5ms GTG (OD)
Aspect Ratio: 16:9
Pixel Pitch: 0.28000 mm x 0.28000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: Edge WLED
HDCP Supported: Yes
Features:

• Single Power ON
• Anti-glare
• Eye Ease
• Digital Daisy Chain
• sRGB
• OnScreen Control
• 3-sided Bezel Less
• Removable Stand
• Flicker-free
• Low Blue Light
• Security Lock-ready
• Low Halogen
• Progressive Scan
• Ergonomic Design
• Eye Comfort Technology
• Dual Monitor Support

Horizontal Frequency: 30 kHz to 115 kHz
Vertical Frequency: 50 Hz to 100 Hz
Adjustable Stand: Yes
Stand Adjustments:

• Swivel
• Height
• Pivot
• Tilt

Glass Hardness: 3H
Active Display Area (H x V): 527 mm x 296 mm
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 100 Hz
Native Contrast Ratio: 1,500:1
Dynamic Contrast Ratio: 10,000,000:1
Brightness: 350 cd/m²
Color Gamut: 100% sRGB
Pixel Per Inch (PPI): 93
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 2.0
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 5
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 2
Number of HDMI 2.0 Ports: 1
Ethernet Technology Details: 1 x RJ-45 Ethernet
Built-in Devices
Built-in Devices: USB Hub
Environmental Conditions
Operating Temperature Range: 5°C to 35°C
Operating Humidity Range: 20% to 80% (Non-condensing)
Non-operating Humidity Range: 5% to 95% (Non-condensing)
Power Description
Operating Power Consumption: 22 W
Standby Power Consumption: 500 mW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 198 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 314.3 mm
Width: 539.4 mm
Depth: 47.2 mm
Height with Stand: 503.20 mm
Width with Stand: 539.40 mm
Depth with Stand: 189.50 mm
Weight with Stand (Approximate): 5.93 kg
Miscellaneous
Energy Star: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
