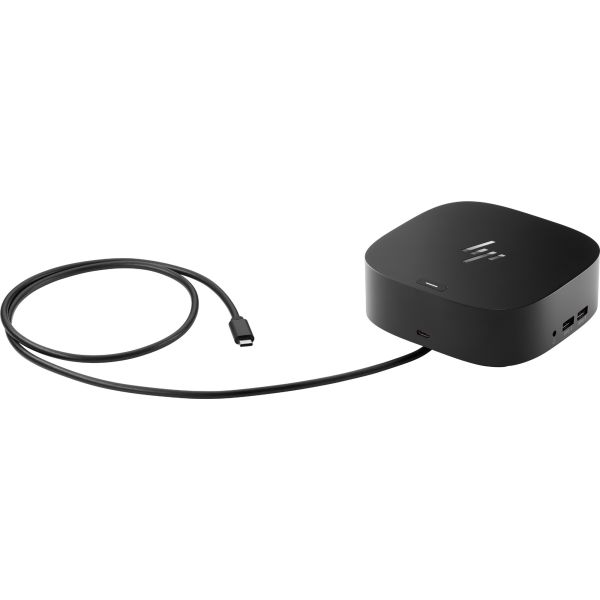

HP USB-C Dock G5

Marketing Information
Universal docking for today's notebooks

Get to work with a single cable from your USB-C™-enabled notebook1 to your displays, devices, and wired network with the versatile, elegant, and space-saving HP USB-C Dock G5. The dock is compatible with notebooks from brands like HP, Apple®, Dell, Lenovo, and more.

Compatible with your mixed PC environment

Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C™- and Thunderbolt™-enabled notebooks.

Single-cable solution

Add your accessories and up to three displays3 to the dock. Then simply connect it to your notebook through a single USB-C™ cable to access your... devices and charge your PC.

Easily manage your commercial HP fleet

Help IT secure and remotely manage your deployed commercial HP notebooks1 and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Small footprint

Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.

Electronic asset management for your docks

Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.

Efficient firmware updates

Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when they're disconnected from each other.

We test so you can rest.

Rigorous testing helps assure dock compatibility across HP notebooks and Apple®, Dell, and Lenovo notebooks with USB-C™ charging ports.
Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 5TW10AA#ABB
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Name: USB-C Dock G5
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
USB Type-C: Yes
USB Type-C Detail: One USB-C port with data and power out (15W)
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 45 mm
Width: 121.9 mm
Depth: 121.9 mm
Weight (Approximate): 675.9 g
Miscellaneous
Kensington Security Slot: Yes
Compatibility:

Compatible Brands:

• HP
• Apple
• Dell
• Lenovo

Warranty
Limited Warranty: 1 Year
