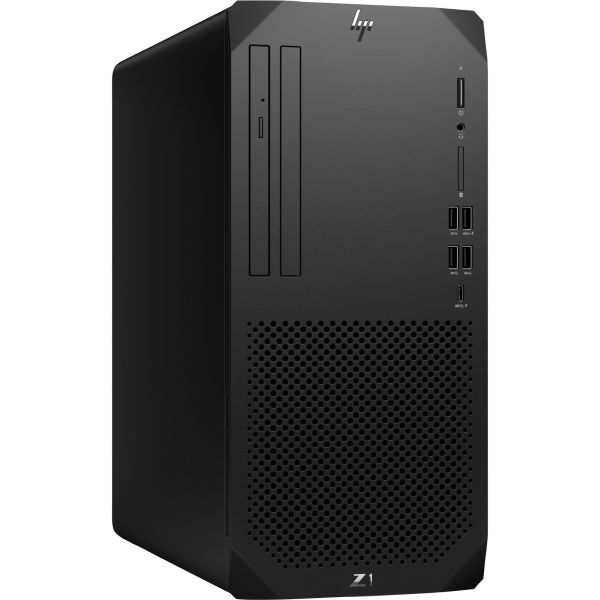

HP Z1 G9 Tower Desktop PC

Marketing Information

Overview | The most affordable pro-certified Z desktop

Pro-grade performance is now within reach with a desktop built for designing, editing and even gaming. From 2D and 3D CAD to entry VR content creation, gain speed and efficiency across your workflows. Go beyond a commercial PC with a desktop certified for select professional software applications.

Upgrade your performance

Easily multitask with an Intel® Core™ processor paired with the ideal graphics for your work. Designing in CAD? Accelerate 3D workflows with professional GPUs.

Industy leading security

HP Wolf for Business security features come standard on every Z1 Tower, for an always-on, alwa...ys-acting, resilient defense. From the BIOS to the browser, above and below the OS, these constantly evolving solutions help protect your PC from threats.

Certified for your workflow

Work confidently knowing your desktop is tested and certified for select professional apps. We've worked closely with software providers on apps like AutoCAD®, SOLIDWORKS® and Revit® so you get seamless, reliable performance across your workflow.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Core™ i7 processor

Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Sustainability

This product contains 60% recycled plastics, utilizes 90% power supply efficiency, and meets GreenScreen® for Safer Chemicals' methodology standards.

Dust Filter

Help keep your system clean while sitting on the factory floor or machining environment with the front-access dust filter.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 8T2A9EA#ABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: Z1 G9
Product Name: Z1 G9 Tower Desktop PC
Product Type: Workstation
Processor
Processor Manufacturer: Intel
Processor Type: Core i7
Processor Generation: 14th Gen
Processor Model: i7-14700
Processor Core: Icosa-core (20 Core)
Processor Speed: 2.10 GHz
L3 Cache: 33 MB
Processor Threads: 28
Chipset
Chipset Manufacturer: Intel
Chipset Model: Q670
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 4
Memory Clock Speed: 4.80 GHz
Memory Configuration: 1 x 16GB
Signal Processing: Unbuffered
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 512 GB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Display & Graphics
VR Ready: Yes
Graphics Controller Manufacturer: NVIDIA
Graphics Controller Model: GeForce RTX 3060
Graphics Memory Capacity: 12 GB
Graphics Memory Accessibility: Dedicated
Network & Communication
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 3
Number of USB 3.2 Gen 1 Ports: 3
Number of USB 3.2 Gen 2 Ports: 4
USB Type-C: Yes
USB Type-C Detail: 1 Type-C® SuperSpeed USB 20Gbps signaling rate port; 1 USB 3.1 Gen 2 Type-C
DisplayPort: Yes
Number of HDMI Outputs: 2
Number Of Ethernet Ports: 1
Number of DisplayPort Outputs: 5
Optional Ports:

Details regarding optional ports aggregated from the information available for this product's family/series. | (1) Flexible Port 1, choice of one of the following:

• 1 x Dual Type-A SuperSpeed USB 5 Gbps signaling rate port
• 1 x Type-C® SuperSpeed USB 10Gbps signaling rate por
• 1 x Thunderbolt™ 3.0 with USB 4.0
• 1 x Video (DisplayPort™ 1.4a or HDMI 2.0b or VGA)
• 1 x Serial

Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 550 W
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Form Factor: Tower
Height: 155 mm
Width: 337 mm
Depth: 308 mm
Weight (Approximate): 5.70 kg
Miscellaneous
Package Contents:

• Z1 G9 Tower Desktop PC
• Keyboard
• Mouse

Energy Star: Yes
TCO Certified: Yes
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair.
