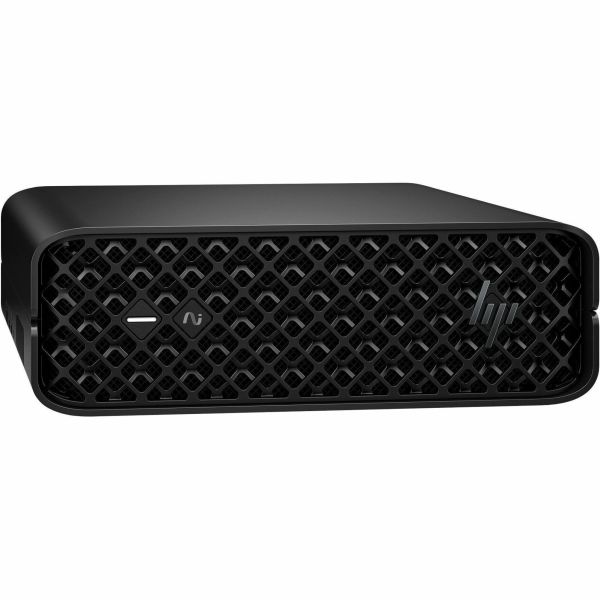

HP Z2 Mini G1i Workstation Desktop PC

Marketing Information

Overview | Powers large workflows. Fits a tiny space.

Get incredible high performance packed into an insanely petite Z2 Mini G1i AI workstation to tackle 3D design, real-time rendering, and basic model development. Fitting on a desk or behind a monitor, conveniently access ports. When your demands change, you have impressive expandability to upgrade.

Impressive Z mini power. Extraordinary expandability.

Get pro-level performance on a sleek, tiny AI workstation with low-profile NVIDIA RTX™ graphics and an Intel® Core™ Ultra processor, including K-Series. Easily upgrade memory and storage as work evolves with tool-less access.

Power AI-accelerated workflows

Accelerate AI w...orkflows with the Z2 Mini G1i AI workstation. Iterate and problem solve faster on your local device with a powerful discrete GPU delivering AI TOPS while a builtin NPU takes on productivity tasks.

Slim design. Fits any space.

Create your ideal workspace with a versatile, modern design that can be positioned horizontally or vertically. Set it on a desk, mount it behind a monitor or attach it under a desk. Perfectly suited for rack environments, fit 6 units in a 5U rack.

Help protect our shared future

At HP, we care about the impact our products have on our people, communities, and planet. That's why this device is EPEAT® Gold with Climate+ and the outer box packaging is 100% sustainably sourced.

Features | HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.

Professional Graphics

Design, render and simulate seamlessly with up to NVIDIA RTX™ 4000 Ada graphics with PCIe G5 high speed bandwidth.

Independent Software Vendor Certifications

Work with confidence knowing your PC is certified by leading software vendors to ensure peak performance even on complex projects.

WiFi Connectivity

Wi-Fi 7 can provide higher data rates than Wi-Fi 6E.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: B76RKETABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: Z2 Mini G1i
Product Name: Z2 Mini G1i Workstation Desktop PC
Product Type: Workstation
Technical Information
AI-powered: Yes
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Core Ultra 9
Processor Model: 285K
Processor Core: Tetracosa-core (24 Core)
Processor Speed: 3.70 GHz
L3 Cache: 36 MB
NPU Manufacturer: Intel
NPU Name: AI Boost
NPU Performance: 13 TOPS
Processor Socket: Socket LGA-1851
Processor Threads: 24
Chipset
Chipset Manufacturer: Intel
Chipset Model: W880
Memory
Standard Memory: 64 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 2
Error Checking: Non-ECC
Memory Configuration: 2 x 32GB
Signal Processing: Unbuffered
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 1 TB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Controllers
Controller Type: NVMe
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: NVIDIA
Graphics Controller Model: RTX 4000 Ada Generation
Graphics Memory Capacity: 20 GB
Graphics Memory Accessibility: Dedicated
Maximum Memory Bandwidth: 280 GB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
Total Number of USB Ports: 6
USB Type-C: Yes
USB Type-C Detail: 2 x USB Type-C® 20Gbps signaling rate
DisplayPort: Yes
Number Of Ethernet Ports: 1
Number of DisplayPort Outputs: 6
Optional Ports:

Details regarding optional ports aggregated from the information available for this product's family/series.

Flex IO - choose one of the following options:

• (1) Dual SuperSpeed USB Std-A 5Gbps port
• (1) Dual SuperSpeed USB Type-C® 10Gbps port
• (1) SuperSpeed USB Type-C® 10Gbps port (Alt Mode DisplayPort™ 1.4 with 15W Output)
• (1) Thunderbolt™ 4
• (1) USB-based Serial port option
• (1) Displayport 2.1 port
• (1) HDMI 2.1 port
• (1) VGA port
• (1) 1GbE NIC
• (1) 1Gbps Fiber LC NIC
• (1) 2.5GbE NIC
• (1) 10GbE NIC

PCIe, choose of:

• (1) Dual SuperSpeed USB Std-A 10Gbps, Graphic cards, Serial port

Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 280 W
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Mini PC
Height: 69 mm
Width: 211 mm
Depth: 218 mm
Weight (Approximate): 2.40 kg
Miscellaneous
Package Contents:

• Z2 Mini G1i Workstation Desktop PC
• Keyboard
• Mouse
• Power Adapter

Energy Star: Yes
TCO Certified: Yes
Environmental Certification:

• Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
• Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)

Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Additional Warranty Information:

Support service included HP 3y Onsite Low End Workstation HW Supp.
