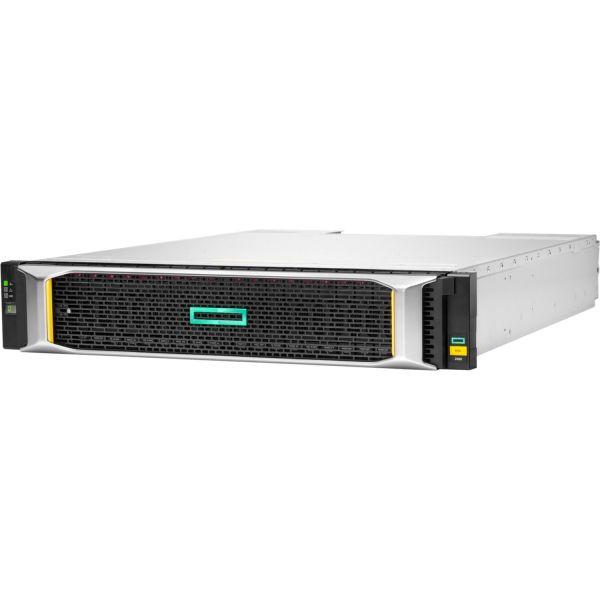

HPE MSA 2060 10GbE iSCSI LFF Storage

Marketing Information

Key Features | Accelerate Applications Affordably

The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.

The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.

HPE MSA's 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator

The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060's new Storage Management Utility intuitive and easy to navigate.

HPE MSA's automated tiering engine dynamically responds to workload chan...ges so you don't have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster

The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.

Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.

Flexible, Modular Architecture That Facilitates Growth Into the Future

The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).

Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R0Q75B
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 2000
Product Model: 2060
Product Name: MSA 2060 10GbE iSCSI LFF Storage
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
Clustering Supported: Yes
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Controllers
Number of Controllers: 2
Controller Type: iSCSI
Interfaces/Ports
Host Interface: iSCSI
Number of iSCSI Ports: 8
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 8
Management & Protocols
Protocols: iSCSI
Physical Characteristics
Height: 88.9 mm
Width: 444.5 mm
Depth: 508 mm
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 5 kg
Miscellaneous
Energy Star: Yes
Warranty
Additional Warranty Information:

Three-year limited warranty, parts exchange next business day delivery.
