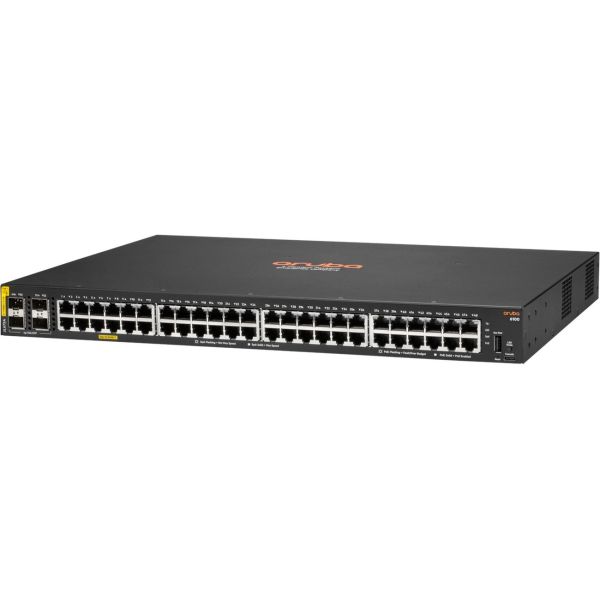

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch

Marketing Information

Aruba 6100 Switch Series

The Aruba CX 6100 Switch Series is modern family of entrylevel access switches ideal for enterprise branch offices andSMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes ...acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JL675A
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 6100
Product Name: 6100 48G Class4 PoE 4SFP+ 370W Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet PoE
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Consumption: 30.60 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Wall Mountable

Height: 43.9 mm
Width: 442 mm
Depth: 304.8 mm
Weight (Approximate): 5.02 kg
