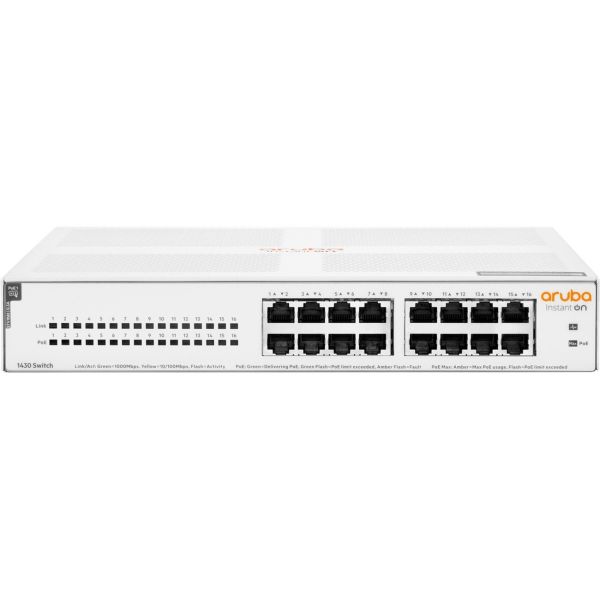

HPE Instant On 1430 16G Class4 PoE 124W Switch

Marketing Information
Aruba Instant On 1430 Switch Series

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable... price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R8R48A#ACC
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: Instant On
Product Series: 1430
Product Name: Instant On 1430 16G Class4 PoE 124W Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.1x
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3i
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3az
• IEEE 802.3af
• IEEE 802.3at

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 124 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 147 W
Physical Characteristics
Form Factor:

• Table Top
• Wall Mountable
• Surface Mount
• Under Table
• Rack-mountable
• Cabinet Mount

Height: 44 mm
Width: 275 mm
Depth: 260 mm
Weight (Approximate): 2.09 kg
Miscellaneous
Package Contents:

• Instant On 1430 16G Class4 PoE 124W Switch
• 2-post Rack Kit
• Brackets

Application/Usage: Business
Warranty
Limited Warranty: Lifetime
Additional Warranty Information: 24 x 7 Chat Support for Entire Warranty Period
