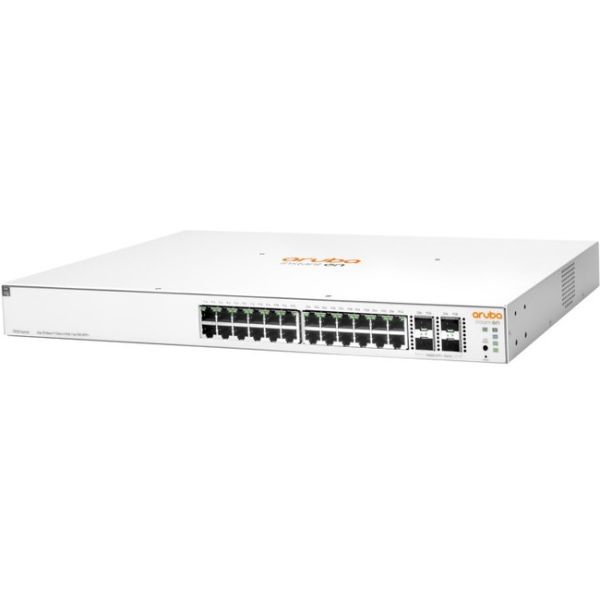

HPE Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch

Marketing Information

High performance, smartmanaged switches designed with small businesses in mind

Whether you own a cafe, a design firm or a tech startup, a reliable and secure KEY FEATURES network plays a critical role in the success of your business. And you need a network solution that gives you peace of mind, allowing you to focus on growing your business instead of managing problems with your network.

Aruba Instant On makes it easy to keep network users happy, mobile and IoT devices connected, and your network secure.

The Aruba Instant On 1930 switches features advanced, smart-managed, fixedconfiguration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today...'s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.

Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What's more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JL683B#ACC
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: Instant On
Product Series: 1930
Product Name: Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet PoE+
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 4
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.3az
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.3ad

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 195 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 248.70 W
Physical Characteristics
Color Family: White
Product Color: White
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Wall Mountable
• Table Top
• Cabinet Mount
• Under Table

Height: 43.9 mm
Width: 442.5 mm
Depth: 264.7 mm
Weight (Approximate): 3.49 kg
Miscellaneous
Package Contents:

• Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
• 2-post Rack Kit
• Brackets

Application/Usage: Business
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
