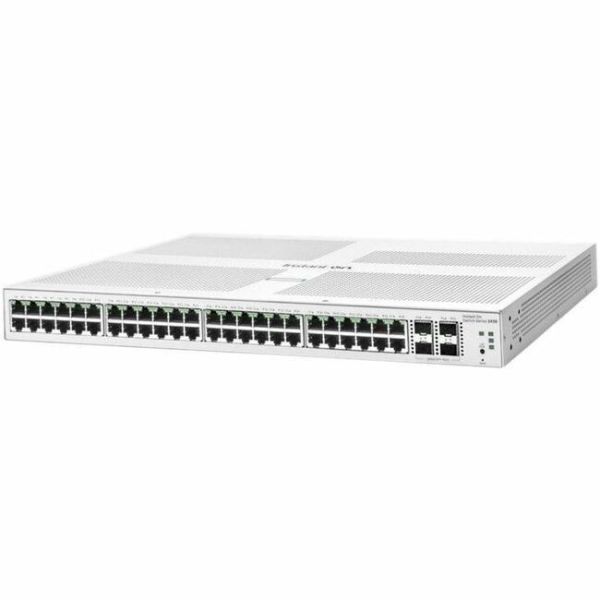

HPE Networking Instant On Switch 48p Gigabit 4p SFP+ 1930

Marketing Information

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely.

These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

Features | Simplify Network Deployment and Management for Small Organizations

The HPE Networking Instant On Switch 1930 series fea...tures easy-to-use, outof-the-box, plug-and-play deployment.

The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).

The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity

The HPE Networking Instant On Switch 1930 series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features

The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance

The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.

8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling

The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JL685A
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: Instant On
Product Series: 1930
Product Name: Networking Instant On Switch 48p Gigabit 4p SFP+ 1930
Product Type: Ethernet Switch
Technical Information
Features:

• Plug and Play
• Energy Efficient
• Auto Denial of Service (DoS) Prevention

Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.1x
• IEEE 802.3

Management & Protocols
Manageable: Yes
Switch Management Type: Smart Managed
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Power Source: Power Supply
Power Consumption: 36.90 W
Physical Characteristics
Height: 43.9 mm
Width: 282.4 mm
Depth: 442.5 mm
Weight (Approximate): 3.13 kg
Miscellaneous
Application/Usage:

• Network
• Small Business
• Wireless Access Point
• Security
• IP Phone
• Surveillance
• Camera

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
