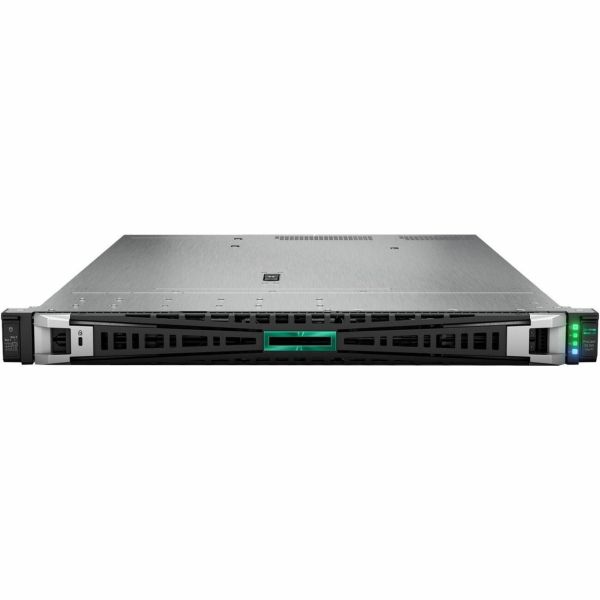

HPE ProLiant DL365 G11 Server

Marketing Information

Overview | HPE ProLiant DL365 Gen11

Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?
The new HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 6 TB), and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Pr...ocessor that must be matched exactly before the server boots.
The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P78090-425
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: DL365 G11
Product Name: ProLiant DL365 G11 Server
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: EPYC
Processor Generation: 4th Gen
Processor Model: 9124
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 3 GHz
Cache: 64 MB
Chipset
Chipset Manufacturer: AMD
Memory
Standard Memory: 64 GB
Maximum Memory Supported: 6 TB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Total Number of Memory Slots: 24
Number of Occupied Memory Slots: 2
Signal Processing: Registered (Buffered)
Storage
Number of Solid State Drives: 2
Total Solid State Drive Capacity: 960 GB
Solid State Drive Interface: Serial ATA
Solid State Drive Configuration: 2 x 480GB
Controllers
Controller Type:

• 12Gb/s SAS
• Serial ATA/600
• NVMe

Controller Model: MR408i-o
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60
I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 1
PCI Express Details: 1 x PCIe 5.0 X16 Full-height, full-length
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 5
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 6
Operating System
Operating System Supported:

• Windows Server 2019
• Windows Server 2022
• Red Hat Enterprise Linux 8.6
• Red Hat Enterprise Linux 9.0
• SUSE Linux Enterprise Server 15 SP4

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 1 kW
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Power Source: Power Supply
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 42.9 mm
Width: 448.9 mm
Depth: 649.4 mm
Weight (Approximate): 12.70 kg
Miscellaneous
Package Contents:

• ProLiant DL365 G11 Server
• 6-foot IEC C-13/C-14 Jumper Cord
• ProLiant DL3XX Gen11 Easy Install Rail 2 Kit

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-3 validation (iLO 6 certification in progress)
• Common Criteria certification (iLO 6 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User data

Energy Star: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
