HPE ProLiant MicroServer Gen11 Server

Marketing Information

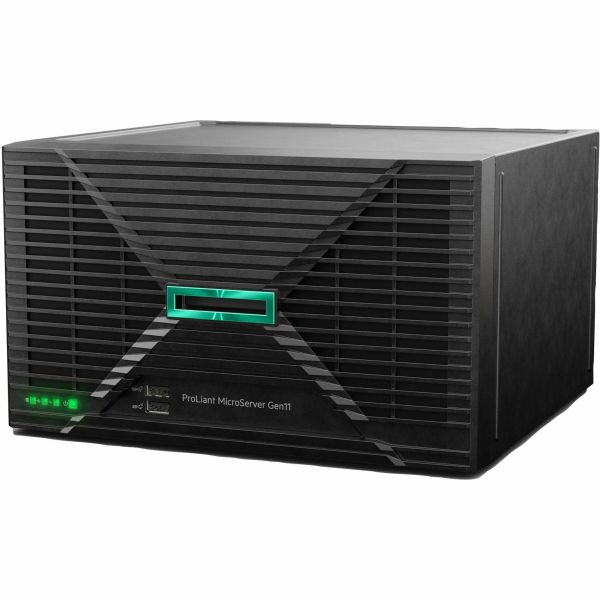

HPE ProLiant MicroServer Gen11

HPE ProLiant MicroServer Gen11 delivers an affordable compact yet powerful entry level server that you can customize for onpremises, edge, hybrid cloud, or even workloads demanding datacenter performance. It has the ultra mini tower form factor and can be placed flat or vertically or wall-mounted depending on the customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4 DIMM slots for DDR5 memory and 2 PCIe slots, whether you want a general-purpose server, NAS or even a virtualization server, you will be s...urprised at how much you can get out of this small and affordable server.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P75207-425
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: MicroServer Gen11
Product Name: ProLiant MicroServer Gen11 Server
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2434
Processor Core: Quad-core (4 Core)
Processor Speed: 3.40 GHz
Cache: 12 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C262
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Total Number of Memory Slots: 4.0
Number of Occupied Memory Slots: 1.0
Signal Processing: Unregistered (Unbuffered)
Storage
Number of Hard Drives: 2
Total Hard Drive Capacity: 8 TB
Hard Drive Interface: Serial ATA/600
Hard Drive RPM: 7200.0
Hard Drive Configuration: 2 x 4TB
Controllers
Controller Type: Serial ATA/600
Controller Model: Intel VROC
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of LFF Bays: 4
Hot Swappable Bays: No
Total Number of Expansion Slots: 2.0
PCI Express Details: (1) PCIe 5.0 slots, (1) PCIe 4.0 slots
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 6
DisplayPort: Yes
Number of DisplayPorts: 1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Plug/Connector Type: C5
Maximum Power Supply Wattage: 180 W
Redundant Power Supply: No
Power Source: AC Adapter
Physical Characteristics
Form Factor: Ultra Micro Tower
Height: 153.9 mm
Width: 261.1 mm
Depth: 249.4 mm
Weight (Approximate): 8.65 kg
Miscellaneous
Package Contents:

• ProLiant MicroServer Gen11 Server
• 1 x 180W External Power Adapter

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0 Gen 11
• Front bezel lock feature, standard
• Padlock slot, standard
• Kensington Lock slot, standard
• Power cord clip, standard

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Server warranty includes 1-year parts, 1-year labor, and 1-year onsite support with next business day response.
