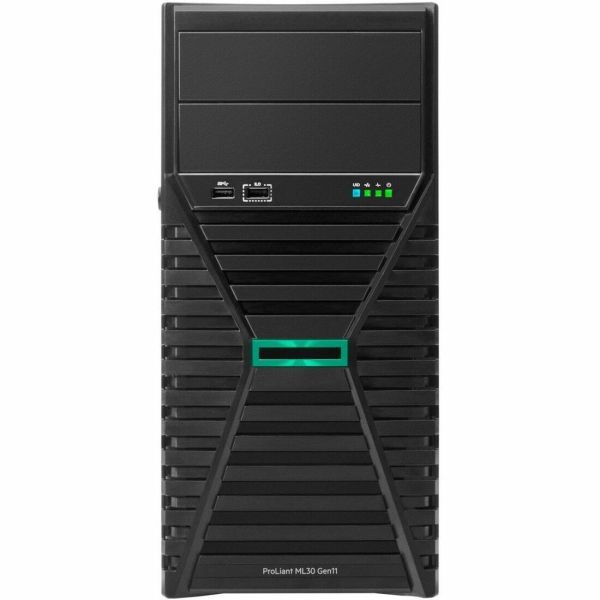

HPE ProLiant ML30 Gen11 Server

Marketing Information

Do you need a reliable enterprise-class tower server that can easily meet your budget?

The HPE ProLiant ML30 Gen11 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen5, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business gr...ows, which can give you an extra edge. Power your business now with an HPE ProLiant ML30 Gen11 server.

Features | Powerful Yet Affordable Server for Your Daily Office Workloads

The HPE ProLiant ML30 Gen11 server is powered by up to 8 cores Intel Xeon E Processor and up to 128 GB 4400 MT/s DDR5 ECC UDIMM, delivering abundant performance for small- to mid-sized business applications. With up to 80 TB storage capacity, the HPE ProLiant ML30 Gen11 is an ideal data storage platform allowing your business to accommodate an increasing amount of data as you grow. An onboard M.2 slot with NVMe SSD support delivers outstanding speed for a boot drive. An optional dedicated HPE iLO port allows you to dedicate more bandwidth to network functions and achieve higher network speeds. The embedded Intel VROC SATA software RAID ships standard, and the HPE Smart Array essentials and performance controllers allow you the flexibility to choose the 12Gbps controller best suited to your environment. Four expansion slots for more flexible usage, including one PCIe Gen5 x16 for increased bandwidth.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P77232-425
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: ML30 G11
Product Name: ProLiant ML30 Gen11 Server
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2434
Processor Core: Quad-core (4 Core)
Processor Speed: 3.40 GHz
Cache: 12 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C262
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Number of Occupied Memory Slots: 1
Signal Processing: Unregistered (Unbuffered)
Storage
Number of Solid State Drives: 2
Total Solid State Drive Capacity: 1.92 TB
Solid State Drive Interface: Serial ATA/600
Solid State Drive Configuration: 2 x 960GB
Controllers
Controller Type: Serial ATA
Controller Model: Intel VROC
I/O Expansions
Number of Total Expansion Bays: 6
Number of External 5.25" Bays: 2
Number of 3.5" Bays: 4
Number of LFF Bays: 4
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 4
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Number of VGA Ports: 1
DisplayPort: Yes
Number of DisplayPorts: 1
Operating System
Operating System Supported:

• Windows Server
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server
• Ubuntu

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 800 W
Redundant Power Supply: No
Hot Swappable Power Supply: Yes
Power Source: Power Supply
Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 368.3 mm
Width: 175.3 mm
Depth: 475 mm
Weight (Approximate): 18.70 kg
Miscellaneous
Package Contents:

• ProLiant ML30 Gen11 Server
• 6 ft/1.83m C-13 Power Cord

Security Features:

• UEFI Secure Boot and Secure Start support.
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication.
• Tamper-free updates - components digitally signed and verified.
• Secure Recovery - recover critical firmware to known good state on detection of compromised FW.
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0
• Front bezel key-lock, standard
• Padlock slot, standard
• Kensington Lock slot, standard
• Intel® TXT (Trusted Execution Technology)

Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 4.0
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

Server warranty includes 3-year parts, 1-year labor, and 1-year on-site support with next business day response.
