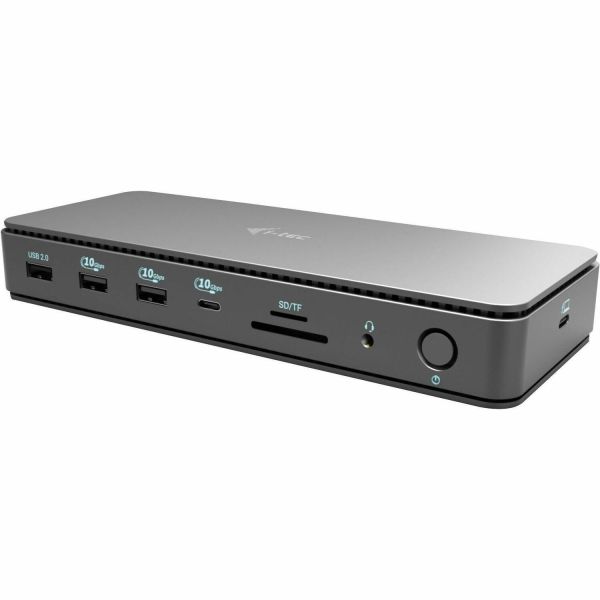

i-tec Docking Station

Marketing Information

Exceptional performance, ultra-fast data transfer and support for up to 8K resolution. One of the most powerful docking stations on the market! Crystal clear image quality, super-fast internet, and the ability to transfer data at speeds of up to 4 GB per second thanks to the integrated Thunderbolt™ 4 output port. You can also, of course, connect your headphones or audio and charge your laptop (92W), all using one single cable. Thanks to the integrated DP 1.4 protocol, you can connect this dock to a monitor with a resolution of up to 8K (7680 x 4320) with a refresh rate of 30 Hz, which is equivalent to the resolution of four monitors, each at 4K resolution. This makes it the ideal solution for graphic designers, analysts, developers, ...film editors, or high-definition video enthusiasts and lovers. The dock is now compatible not only with Thunderbolt™ 4 ports, but also USB-C*, making it a flexible solution for businesses and users who run laptops and tablets with different ports. * Only one (4K/60 Hz) monitor is supported when connected to USB-C.

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: TB4DUALDPDOCKPDPROUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Tablet
• Memory Card Reader
• Notebook
• Microphone
• Headphone
• Monitor

Cable Length: 1 m
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD (TransFlash)

Features: Power Delivery Pass-through
Number of Displays Supported: 2
Screen Mode Supported:

• 8K @ 30Hz
• 4K @ 60Hz
• 8K
• 4K

Supported Resolutions:

• 7680 x 4320
• 3840 x 2160

Maximum Data Transfer Rate: 5 GB/s
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB Type-A Ports: 5
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C Power Delivery in (28V/5A, 140W), 1 x USB-C 3.2 Gen2 (10 Gbps), supporting BC 1.2 (fast charging)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
Number of Thunderbolt 4 Ports: 2
USB Power Delivery: 92W
Software
Operating System Supported:

• Windows 10
• Windows 11
• Mac OS X
• Linux

Physical Characteristics
Color Family: Black
Product Color: Black
Height: 197 mm
Width: 79 mm
Depth: 30 mm
Weight (Approximate): 286 g
Miscellaneous
Package Contents:

• Docking Station
• Thunderbolt 4 Cable 100 cm
• USB-C Charger (28V/5A, 140W) with Detachable Cable
• Quick Start

Warranty
Limited Warranty: 2 Year
