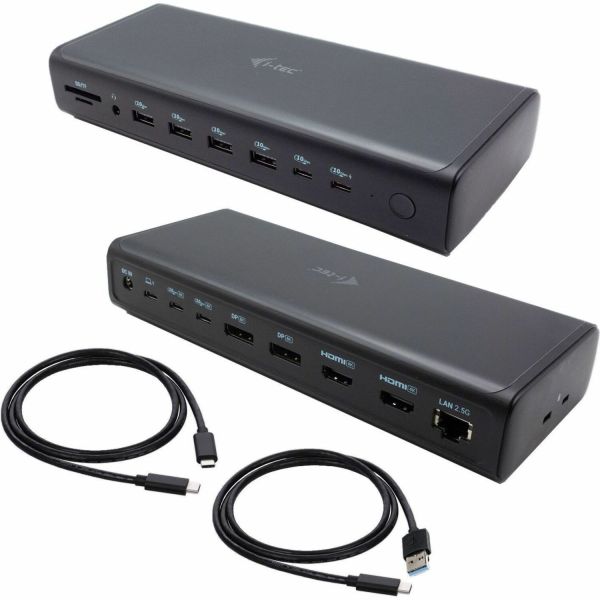

i-tec Universal Docking Station

Marketing Information

The ultimate performance docking station. Supports up to six external monitors at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals. The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient. The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

• Support for up to 6 external monitors with resolutions up to 2x 8k, or 6x 4K/60Hz
• Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video or 10 Gbps data)
• 2x USB-C (10 Gbps), one supporting up to 30 W charging
• 4x USB-A 3.1 Gen. 1
• LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
• 5 mm audio/mic port
• 1x SD/microSD slot
• Laptop power supply up to 140 W
• Docking station on/off button
• Support for installation behind a monitor

If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible. If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: CA6MONITORDOCKPDUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Line: Universal
Product Name: Universal Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Memory Card Reader
• Microphone
• Notebook
• Tablet
• Monitor
• Smartphone

Cable Length: 1 m
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features: Power Delivery Pass-through
Management Features: Wake-on-LAN
Number of Displays Supported: 6
Screen Mode Supported:

• 4K @ 60Hz
• 8K @ 30Hz
• 8K @ 60Hz
• 4K @ 144Hz
• 4K @ 120Hz
• 8K
• 4K

Supported Resolutions:

• 3840 x 2160
• 7680 x 4320

Maximum Data Transfer Rate: 1.25 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 9
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 5
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10Gbps) supporting Fast Charge (BC 1.2), 1 x USB-C 3.2 Gen 2 (10Gbps) supporting Power Delivery up to 30W. 2 x USB-C MFDP, 1 x USB-C port for connection to USB-C devices
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 140W
Software
Operating System Supported:

• Windows 10
• Windows 11
• Mac OS X
• Linux
• ChromeOS
• Ubuntu
• macOS Big Sur
• Android 5.0 Lollipop

Power Description
Power Source Type: Power Adapter
Physical Characteristics
Height: 218 mm
Width: 88 mm
Depth: 37 mm
Weight (Approximate): 546 g
Miscellaneous
Package Contents:

• Universal Docking Station
• USB-C to USB-C (100cm) and USB-C to USB-A (100cm) Connection Cables
• Manual
• Power Adapter and Power Cable

Kensington Security Slot: Yes
Warranty
Limited Warranty: 2 Year
