i-tec Docking Station

Marketing Information

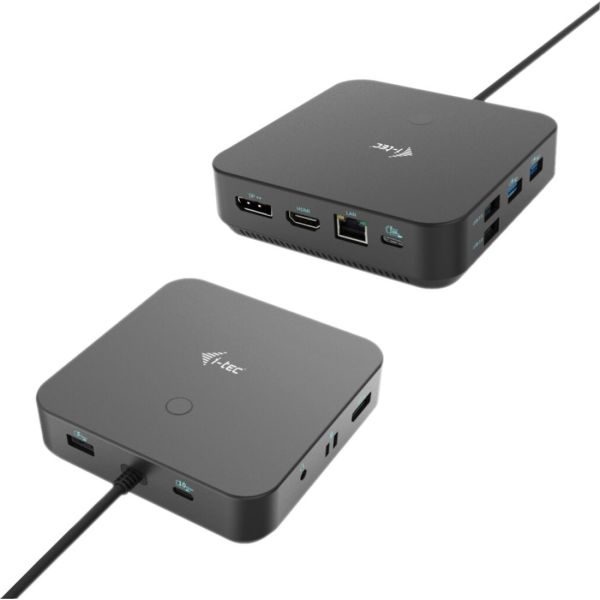

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4 port. Of course, it supports charging of your laptop or tablet, up to 100 W. The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.
The dock can be purchased in two variants:

• 1. without the included USB-C charging adapter (product code C31TRIPLE4KDOCKPDPRO)
• 2. with the included 100W adapter (this variant)

Note: macOS operating system does not support Multi Stream Transport (MST) vide...o transfer technology, which means that if connected to macOS, the same image will be projected on both connected monitors.

• Connect up to three external 4K/30Hz monitors
• Refresh rate up to 360Hz (when connected to a single 1080p monitor)
• Power delivery: up to 100W
• 1x HDMI, 2x DisplayPort++
• 3x USB 3.1, 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals. Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
• Internet connection with 10/100/1000 Mbps support
• Combination audio and microphone jack on the front panel
• Kensington lock provides anti-theft protection, especially in shared office environments or public areas
• Docking station power switch allows for maximum power savings
• Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
• Supports Windows 10, macOS, Android, iPadOS, ChromeOS and Linux

The dock can be used without a power adapter connected. In this case, the video outputs, LAN (RJ-45), audio/mic and both USB 2.0 ports will always be functional. However, the USB 3.0 ports and the USB-C data port may not work when connecting devices with higher power requirements (e.g. SSDs, especially NVMe drives). In this case, the docking station may shut down. We recommend using the docking station with a power adapter connected to ensure that all ports are used and that maximum data transfer speeds are achieved. (The adapter is included in the package). Note: If connected to an Android device, the dock will only work with the power adapter connected. (Adapter included).
Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: C31TRI4KDPDPRO100UK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Docking Station
Package Type: Retail
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Smartphone
• Monitor
• Tablet

Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• 5K
• Full HD
• QHD
• HD

Supported Resolutions:

• 3840 x 2160
• 5120 x 2880
• 1920 x 1080
• 2560 x 1440
• 1280 x 720

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 3
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1x USB-C 3.2 Gen. 2 port (10 Gbps), 1x USB-C 3.2 port Gen. 2 (10 Gbps) + PD (Power delivery)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Built-in Devices
Speakers: Yes
Software
Operating System Supported:

• iPadOS
• Android
• Linux
• ChromeOS
• macOS
• Windows 10

Power Description
Maximum Power Supply Wattage: 100 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 113 mm
Width: 113 mm
Depth: 31.2 mm
Weight (Approximate): 340 g
Miscellaneous
Kensington Security Slot: Yes
