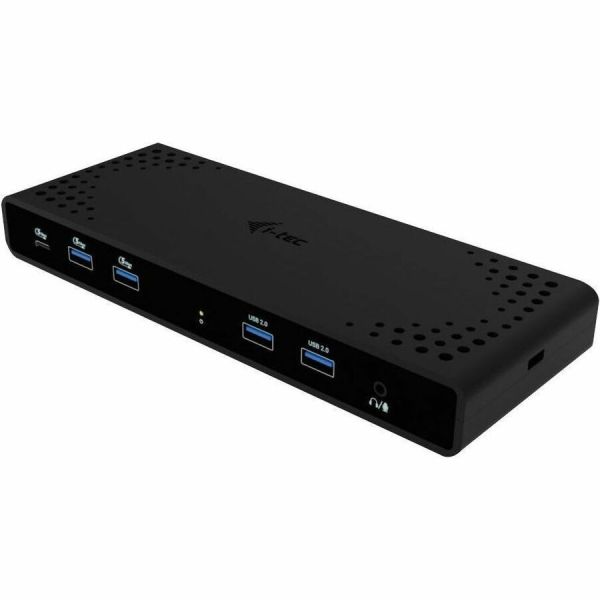

i-tec Docking Station

Marketing Information

A powerful, yet cost-effective docking station that supports output to up to two external monitors in high resolution, up to 4K/60Hz. The dock can be used with virtually all laptops as it supports connection to all common ports: 3.0, USB-C, USB4 and Thunderbolt" 3/4 while supporting all common current operating systems. Plenty of ports, a reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind a monitor all make this docking station the ideal companion for true professionals. The docking station can be used when simply connected to a laptop (without a USB-C charger), or with a USB-C charger (included). In this case, it supports charging of a laptop or tablet, up to 85 W of... power.

• Connection of 2 external monitors with up to 4K/60Hz resolution
• Power Delivery: up to 85W (when using a 100W USB-C charger; not included)
• 2 DisplayPort and 2 HDMI ports available
• 2x USB 3.1 Gen 1 (5 Gbps), 2x USB 2.0 and 1x USB-C Gen 1 (5 Gbps) make it easy to connect your USB devices and peripherals
• Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
• Combination audio and microphone connector
• Kensington lock provides anti-theft protection, especially in shared office environments or public places
• Docking station power switch for maximum power savings
• Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
• Supports Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: CADUA4KDOCKPDB100UK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Monitor
• Smartphone
• Tablet
• Microphone
• Notebook

Cable Length: 1 m
Features: Power Delivery Pass-through
Management Features: Wake-on-LAN
Number of Displays Supported: 2
Screen Mode Supported:

• 4K
• 4K @ 60Hz
• 5K

Supported Resolutions:

• 3840 x 2160
• 5120 x 2880

Maximum Data Transfer Rate: 640 MB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen.1 port with fast charging support (BC 1.2), 1 x USB-C input for power adapter (USB-C 100W charger included)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 85W
Software
Operating System Supported:

• Windows 10
• Windows 11
• Mac OS X
• Android 5.0 Lollipop
• Linux
• ChromeOS
• Ubuntu

Power Description
Maximum Power Supply Wattage: 100 W
Power Source Type: Power Adapter
Physical Characteristics
Height: 223.8 mm
Width: 83.4 mm
Depth: 27.1 mm
Weight (Approximate): 340 g
Miscellaneous
Package Contents:

• Docking Station
• USB-C Connection Cable and USB-C to USB-A Adapter (100cm)
• Manual
• Power Cable
• USB-C 100W Charger

Kensington Security Slot: Yes
Warranty
Limited Warranty: 2 Year
