i-tec Docking Station

Marketing Information

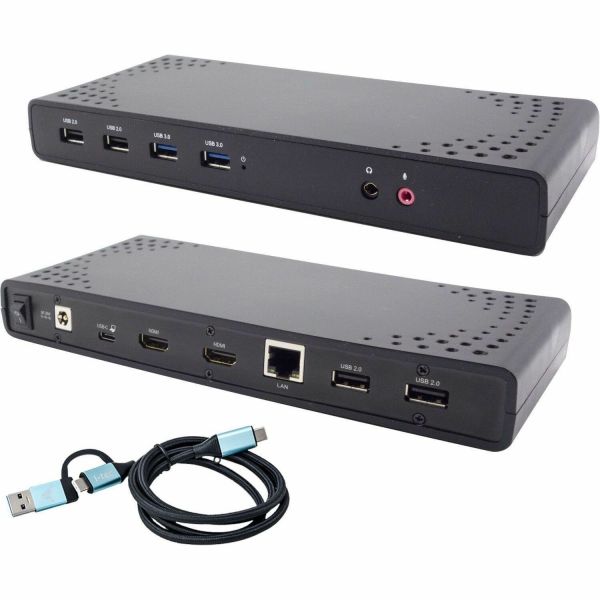

Enhance your notebook, tablet or smartphone, by utilising USB-C or USB-A connectivity. This Thunderboltcompatible dual monitor docking station features the DisplayLink DL3900 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports chargingup at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 85W. 2x USB-A 3.0 ports and 4x USB 2.0 make it easy to connect all of your existing hardware and the Gigabit Ethernet RJ45 port provides a reliable, robust and high-speed internet connection, supporting 10/...100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces. i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

• Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included)
• 2x HDMI support the connection of max. 2 monitors (max. resolution 2x FHD/60 Hz or single 1440p/50 Hz)
• 6x USB-A ports (2x USB 3.0 and 4x USB 2.0) for connecting all existing hardware and accessories.
• Fast network and Internet access with Gigabit Ethernet RJ-45 port, supporting 10/100/1000 Mbps speeds
• Kensington lock slot to discourage theft
• Separate 3.5 mm audio input/output jacks
• Power-saving on / off switch allowing a quick and easy reset of the docking station.
• 1x power supply input - external power adapter (output: DC 20V/5A)
• Cross-brand and cross-platform compatibility

If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: CADUALHDMIDOCKPDUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Docking Station
Package Type: OEM
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Monitor
• Smartphone
• Tablet
• Notebook

Number of Displays Supported: 2
Screen Mode Supported:

• QHD
• Full HD

Supported Resolutions:

• 2560 x 1440
• 1920 x 1080

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Audio Line Out: Yes
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Number of USB Type-A Ports: 6
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 85W
Software
Operating System Supported:

• Windows 10
• Mac OS X
• Android 5.0 Lollipop
• Linux
• ChromeOS
• Ubuntu

Power Description
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 244 mm
Width: 88 mm
Depth: 27 mm
Weight (Approximate): 314 g
Miscellaneous
Package Contents:

• Docking Station
• USB-C Cable with USB-C to USB-A Adapter (100 cm)
• Power Adapter (DC Cable 110cm, Power Cable 170cm)
• Manual

Kensington Security Slot: Yes
Warranty
Limited Warranty: 2 Year
