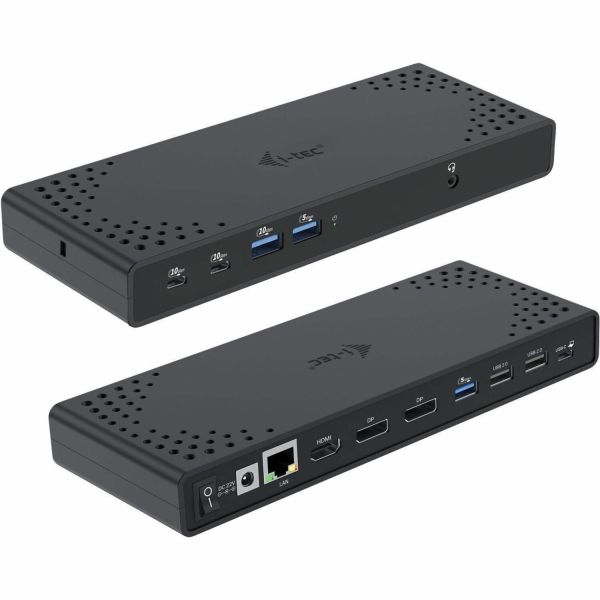

i-tec USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W

Marketing Information

A high-performance, new generation USB-C docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt" 3/4 ports, while supporting all common current operating systems. Plenty of USB ports (including those support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

• Connect to 3 external monitors in resolutions up to 4K*
• Power deliver...y: up to 100 W
• 2 DisplayPort and 1 HDMI port available
• 7 USB ports: 2x USB-C (10 Gbps) supporting BC 1.2 fast charging and 5x USB-A (1x Gen 2 (10 Gbps)
• supporting BC 1.2 fast charging, 2x Gen 1 (5 Gbps) supporting BC 1.2 fast charging and 2x USB 2.0)
• Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for
• 10/100/1000 Mbps speeds
• Combo jack for audio and microphone
• Kensington lock provides anti-theft protection, especially in shared office environments or public areas
• Docking station power switch allows for maximum power savings
• Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
• Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates)

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: C31TRIPLE4KDOCKPDUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Monitor
• Tablet PC
• Notebook

Cable Length: 1 m
Features: Power Delivery Pass-through
Management Features:

• MAC Address Pass-through
• Wake-on-LAN

Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• 4K UHD
• Full HD
• QHD
• HD
• 4K @ 60Hz

Supported Resolutions:

• 3840 x 2160
• 1920 x 1080
• 2560 x 1440
• 1280 x 720

Maximum Data Transfer Rate: 1.25 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
Number of USB Type-A Ports: 5
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C 3.2 Gen2 port with fast charging support (BC 1.2) (data only)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 10
• Windows 11
• iPadOS
• Android
• Android 10
• Android 11
• Android 12
• ChromeOS
• Linux
• Mac OS X 10.12 Sierra

Power Description
Maximum Power Supply Wattage: 129.80 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 224 mm
Width: 88 mm
Depth: 27 mm
Weight (Approximate): 330 g
Miscellaneous
Package Contents:

• USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
• USB Cable from Type C to Type C (100cm)
• Power Adapter
• Manual

Kensington Security Slot: Yes
Warranty
Limited Warranty: 2 Year
