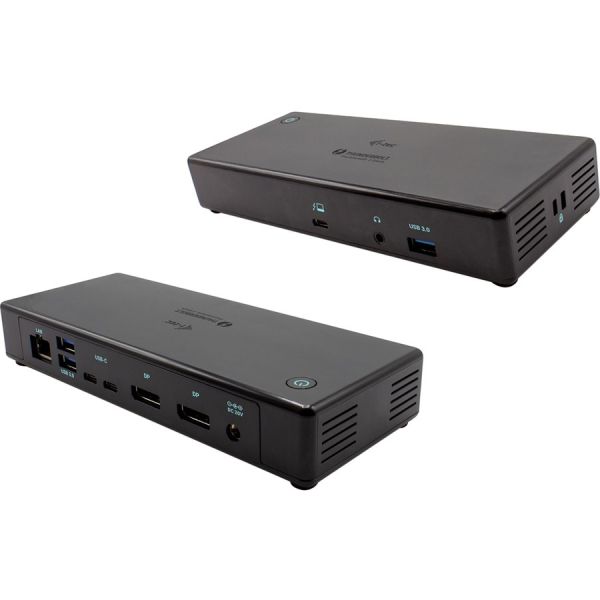

i-tec Thunderbolt3/USB-C Dual DisplayPort 4K Docking Station + Power Delivery 85W

Marketing Information

The latest, second-generation Thunderbolt 3 technology, has arrived. Outstanding performance, ultra-fast data transfer rate and up to 8K resolution support. This is one of the most powerful docking stations available in the market today.

Enjoy unrivalled image quality, fast internet, and the ability to transfer data at a rate of over 1 GB per second, even when using multiple USB ports simultaneously. You can also connect your headphones or speaker and charge your notebook (85W) while working , all via a single port.

Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K (7680 x 4320) with a 30 Hz refresh rate, which is comparable to four 4K monitors side by side. An ideal sol...ution for professional graphic designers, data analysts, engineers, film editors or enthusiasts.

Second generation Thunderbolt 3 technology means the docking station is compatible with Thunderbolt 3 and USB-C, making it a flexible and versatile option for companies with a mixed estate of Thunderbolt 3 and USB-C notebooks or tablets.

• Connect dual 4K/60Hz external displays, or a single 8K/30Hz.
• Power delivery: 85W
• Features two DisplayPort outputs
• 2x USB 3.0, 1x USB 3.1 Gen 2 with fast charge support and 2x USB-C Gen 2 ports (10Gbps) make it easy to connect all of your existing USB devices and peripherals.
• Gigabit Ethernet RJ-45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds.
• Combo audio & microphone in/out jack on the front panel.
• Kensington lock slot provides additional security, especially for those working regularly in shared offices or public spaces.
• Power saving On/Off switch on the top panel.
• Supports i-tec docking station VESA bracket for vertical installation behind a VESA-compliant monitor.
• Supports Windows 10, macOS X
• Supplied with 135W (20V, 6,75A) professional quality power supply and 70 cm Thunderbolt 3 cable.

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: TB3CDUALDPDOCKPDUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Thunderbolt3/USB-C Dual DisplayPort 4K Docking Station + Power Delivery 85W
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Tablet PC

Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C Gen 2 port (10- Gbps, for data only)
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 135 W
Physical Characteristics
Height: 31 mm
Width: 78 mm
Depth: 197 mm
Weight (Approximate): 337 g
Miscellaneous
Kensington Security Slot: Yes
