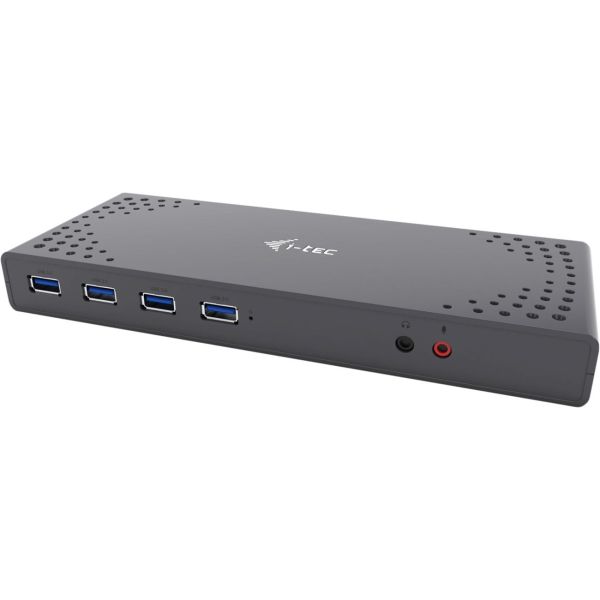

i-tec USB-C / USB-A 4K Dual Docking Station

Marketing Information

Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces (cables included).

The unit is equipped with four graphic outputs, 2x HDMI and 2x DisplayPort, although a maximum of two monitors can be supported simultaneously. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz) is supported when a single monitor is connected via two DisplayPort cables.

6x USB-A 3.0 ports (USB 3.0 / 2.0 compa...tible) make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high speed internet connection, supporting 10 / 100 / 1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on / off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.

i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.

This docking station is suitable for use with Macbook Pro 2016, Macbook 2015, Chromebook Pixel 2015, Acer Switch Alpha 12, Acer Switch Alpha 13, Dell XPS 13, HP Elitebook Folio G1 and ASUS UX390UAK, as well as other devices with USB-C connectivity.

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: CADUAL4KDOCKUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: USB-C / USB-A 4K Dual Docking Station
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Smartphone
• Tablet
• Notebook

Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 7
Number of USB 3.0 Ports: 6
Network (RJ-45): Yes
DisplayPort: Yes
Microphone: Yes
HDMI: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 27 mm
Width: 223 mm
Depth: 88 mm
Weight (Approximate): 338 g
Miscellaneous
Package Contents:

• USB-C / USB-A 4K Dual Docking Station
• 1 x USB-C 3.1 to USB-C Cable
• 1 x USB-C 3.1 to USB-A Cable
• 1 x 100W Power Adapter with UK 3-pin Plug
• 1 x Quick Start Guide

Compatibility:

Notebooks:

• Macbook Pro 2016
• Macbook 2015
• Chromebook Pixel 2015
• Acer Switch Alpha 12
• Acer Switch Alpha 13
• Dell XPS 13
• HP Elitebook Folio G1
• ASUS UX390UAK

Warranty
Limited Warranty: 2 Year
