i-tec Docking Station

Marketing Information

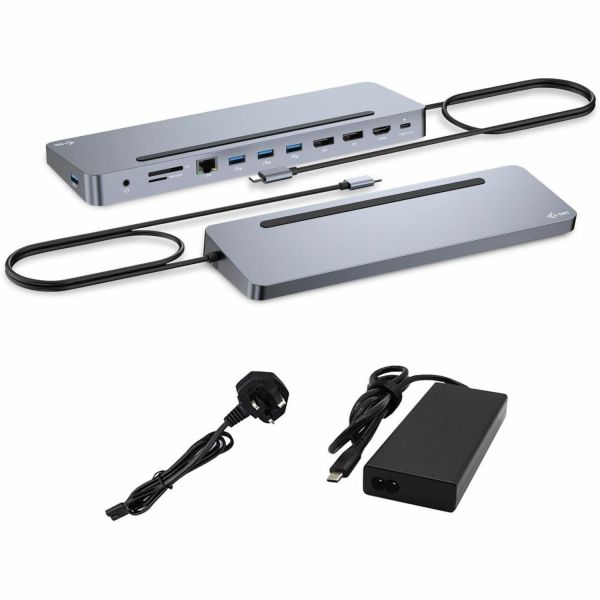

Ergonomic metal USB-C dock with support for up to 3 external monitors. The dock is compatible with any laptop equipped with a USB-C or Thunderbolt port (the 60 cm long integrated cable is long enough to connect all laptops with screens up to 15"). The dock provides 4 USB ports, reliable and fast connectivity to corporate networks thanks to the integrated LAN port and a power supply of up to 100 W. The design of the dock also allows it to be used as a laptop stand. The docking station is available in two versions: 1. without the included USB-C charging adapter (product code C31FLAT2PDPRO) 2. with the included 100W adapter (product code C31FLAT2PDPRO100W/UK).

• Connect up to three external monitors with up to 4K resolution.
...i> Power: up to 100W
• Provides 2x DisplayPort and HDMI
• 4x USB 3.2 (5 Gbps) ports allow you to easily connect your USB devices and peripherals.
• Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
• Combination audio and microphone (headset) jack on the front panel
• SD and microSD card readers
• Metal body
• Can also be used as a handy laptop stand

Specifications
Manufacturer: i-tec Technologies s.r.o.
Manufacturer Part Number: C31FLAT2PDPRO100WUK
Manufacturer Website Address: http://www.i-tec.pro
Brand Name: i-tec
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Tablet PC
• Microphone
• Notebook
• Monitor
• Headset
• Smartphone

Cable Length: 60 cm
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features: Power Delivery Pass-through
Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• Full HD
• 5K
• HD
• QHD

Supported Resolutions:

• 3840 x 2160
• 2560 x 1440
• 1920 x 1080
• 5120 x 2880
• 1280 x 720

Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 5
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C PD port (power only)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 10
• Mac OS X
• Android
• Linux
• ChromeOS
• Windows 11
• iPadOS

Power Description
Input Voltage Detail:

• 230 V AC
• 120 V AC

Frequency:

• 50 Hz
• 60 Hz

Maximum Power Supply Wattage: 100 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Grey
Product Color: Grey
Height: 270 mm
Width: 85 mm
Depth: 23 mm
Weight (Approximate): 268 g
Miscellaneous
Package Contents:

• Docking Station
• Manual
• USB-C 100W Charging Adapter

Compatibility:

Compatible with any laptop equipped with a USB-C or Thunderbolt port

Warranty
Limited Warranty: 2 Year
