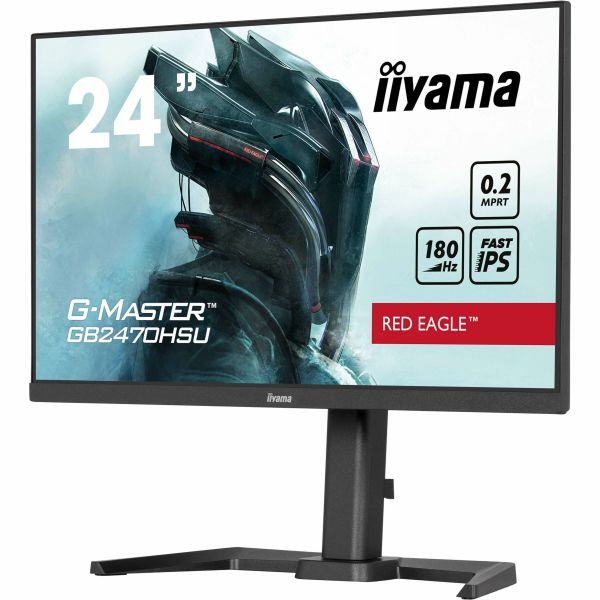

iiyama G-MASTER Red Eagle GB2470HSU-B6 LED Monitor

Marketing Information

FAST IPS

The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.2ms Moving Picture Response Time (MPRT).

180HZ & 0.2MS MPRT

With 180Hz refresh rate and 0.2ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

BLACK TUNER

The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers.... Don't want to disturb anybody? Plug your headset in the headphone connector and enjoy!

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: GB2470HSU-B6
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: G-MASTER Red Eagle
Product Model: GB2470HSU-B6
Product Name: G-MASTER Red Eagle GB2470HSU-B6 LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: Fast IPS
Response Time: 200 µs
Response Time Details: 0.2ms MPRT
Aspect Ratio: 16:9
Pixel Pitch: 0.27500 mm x 0.27500 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Blue Light Reduction
• Flicker-free
• i-Style-Color
• On-screen Display (OSD)
• 6-axis Color Adjustment
• X-Res Technology
• Cable Lock Slot
• Cable Management
• Eyesafe Certified

Horizontal Frequency: 30 kHz to 225 kHz
Vertical Frequency:

• 48 Hz to 180 Hz - HDMI
• 48 Hz to 180 Hz - DisplayPort

Stand Adjustments:

• Swivel
• Tilt
• Pivot
• Height

Active Display Area (H x V): 527 mm x 296.50 mm
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 180 Hz
Colour Supported: 16.7 Million Colours (8-bit)
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: Adaptive Sync
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.4
USB: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 4
Number of DisplayPorts: 1
Built-in Devices
Built-in Devices: USB Hub
Webcam: No
Power Description
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Energy Efficiency Class (SDR) (from 1st March 2021): E
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 18 kW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 18 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Height: 323 mm
Width: 539.5 mm
Depth: 45 mm
Height with Stand: 505 mm
Width with Stand: 539.50 mm
Depth with Stand: 171 mm
Weight with Stand (Approximate): 4.50 kg
Miscellaneous
Package Contents:

• G-MASTER Red Eagle GB2470HSU-B6 LED Monitor
• Power Cable
• USB Cable
• HDMI Cable
• DP Cable
• Quick Start Guide
• Safety Guide

Application/Usage: Gaming
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
