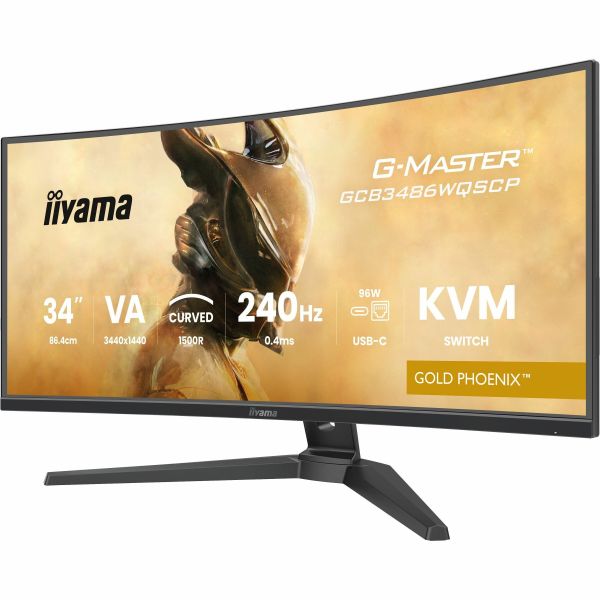

iiyama Gold Phoenix G-MASTER GCB3486WQSCP-B1 Widescreen Gaming LED Monitor

Marketing Information

G-MASTER GCB3486WQSCP-B1

Get ahead with the curved GCB3486WQSCP-B1 Gold Phoenix featuring 240Hz refresh rate, 0.4ms response time and KVM Switch

Dive into an immersive gaming experience with the 34" GCB3486WQSCP-B1 curved gaming monitor. Designed with a 1500R curvature, it wraps around your field of view for a more engaging and comfortable experience. The VA panel with an ultra-wide 3440x1440 resolution delivers deep contrasts and vibrant colours, making every detail stand out.

With an ultra-fast 240Hz refresh rate, motion is incredibly smooth and fluid, ensuring top-tier performance for competitive gaming. The rapid 0.4ms response time (MPRT) minimises motion blur, keeping your gameplay crisp and precise. HDR400 e...nhances brightness and contrast for more lifelike visuals, while FreeSync Premium reduces screen tearing and stuttering for a seamless experience.

Seamlessly switch between work and play with the built-in KVM function, allowing you to control multiple devices with a single set of peripherals. Additionally, the monitor features both Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functions, enabling efficient multitasking and boosting productivity.

CURVED DESIGN 1500R

The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

240Hz & 0.4ms MPRT

With 240Hz refresh rate and 0.4ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

FreeSync™ Premium Technology

This monitor guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.

PiP

PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.

PbP (picture-by-picture)

The PbP (picture-by-picture) feature of gaming monitors enables you to display content from two sources simultaneously while the screen can be split to the left and right side. This screen provides an expansive workspace equivalent to having displays seamlessly merged, eliminating any distracting bezels and the inconvenience of dealing with additional cables. This functionality is ideal for a wide variety of applications, including immersive gaming experiences, and multitasking in style.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: GCB3486WQSCP-B1
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: Gold Phoenix G-MASTER
Product Model: GCB3486WQSCP-B1
Product Name: Gold Phoenix G-MASTER GCB3486WQSCP-B1 Widescreen Gaming LED Monitor
Product Type: Gaming LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 34"
Viewable Screen Size: 86.4 cm (34")
Screen Mode: UWQHD
Panel Technology: Vertical Alignment (VA)
Response Time: 0.40 ms
Response Time Details: 0.4ms MPRT
Aspect Ratio: 21:9
Pixel Pitch: 0.23200 mm x 0.23200 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• sRGB
• Picture by Picture
• Picture in Picture
• Split Screen
• Wide Viewing Angle
• ComfortView
• High Dynamic Range (HDR) 400
• Motion Blur Reduction Technology
• Kensington Lock
• Cable Lock Slot
• High Dynamic Range (HDR)
• Blue Light Reduction
• Color Temperature Selection
• i-Style-Color
• On-screen Display (OSD)
• Display Data Channel/Command Interface (DDC/CI)
• Cable Management
• Auto Low Latency Mode (ALLM)
• Flicker-free

Horizontal Frequency: 24 kHz to 360 kHz
Adjustable Stand: Yes
Stand Adjustments:

• Height
• Tilt

Curved Screen: Yes
Curvature: 1500R
Active Display Area (H x V): 797 mm x 334 mm
Flicker Free: Yes
Video
Maximum Resolution: 3440 x 1440
Standard Refresh Rate: 240 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 4,000:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 500 cd/m²
Tearing Prevention Technology: FreeSync Premium
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 2.1
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 2
Total Number of HDMI Ports: 2
Number of USB Ports: 4
Number of DisplayPorts: 1
Total Number of USB Type-C Ports: 2
Number of USB 3.2 (Gen 1) Ports: 2
Number of Network (RJ-45) Ports (Rear): 1
Built-in Devices
Built-in Devices:

• KVM Switch
• USB Hub

Software
Operating System Supported: macOS
Power Description
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Energy Efficiency Class (SDR) (from 1st March 2021): F
Energy Efficiency Class (HDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 32 kW
ON Mode Energy Consumption per 1000Hour (HDR) (from 1st March 2021): 52 kW
Frequency: 50 Hz
Maximum Power Consumption: 52 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Black
Height: 364 mm
Width: 808 mm
Depth: 117 mm
Height with Stand: 544.50 mm
Width with Stand: 808 mm
Depth with Stand: 275 mm
Compressed Height with Stand: 414.50 mm
Extended Height with Stand: 544.50 mm
Weight (Approximate): 8 kg
Miscellaneous
Package Contents:

• Gold Phoenix G-MASTER GCB3486WQSCP-B1 Widescreen Gaming LED Monitor
• Power Cables (1.85m)
• USB Cables (1.5m)
• HDMI Cables (1.85m)
• DP Cables (1.85m)
• Quick Start Guide
• Safety Guide

Application/Usage: Gaming
Environmental Certification: Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
