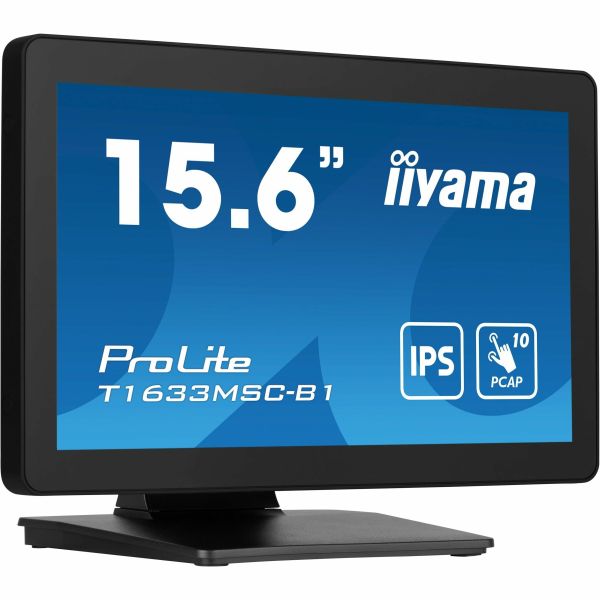

iiyama PROLITE T1633MSC-B1 15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

Marketing Information

15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the scr...een comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T1633MSCB1
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T1633MSC-B1
Product Name: PROLITE T1633MSC-B1 15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 16"
Viewable Screen Size: 39.6 cm (15.6")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Pixel Pitch: 0.17900 mm x 0.17900 mm
Response Time: 5 ms
Response Time Details: 5ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: WLED
HDCP Supported: Yes
Features:

• Edge-to-Edge Glass Design
• Scratch Resistant
• Wide Viewing Angle
• Ergonomic Design
• ComfortView
• Cable Management
• Water Resistant
• Dust Resistant
• Plug & Play
• On-screen Display (OSD)
• Cable Lock Slot
• Blue Light Reduction
• i-Style-Color
• OverDrive
• Bezel-less Design
• Blue Light Filter
• Security Lock

Horizontal Frequency: 30 kHz to 68 kHz
Stand Adjustments: Tilt
Bezel Color: Matte Black
Ingress Protection (IP) Rating: IP54
Active Display Area (H x V): 344.20 mm x 193.60 mm
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 450 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Number of DisplayPorts: 1
Number of USB 2.0 Ports: 2
Built-in Devices
Built-in Devices: USB Hub
Power Description
Energy Efficiency Class (SDR) (from 1st March 2021): C
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 6 kW
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Matte Black
Height: 246.5 mm
Width: 389 mm
Depth: 45.5 mm
Height with Stand: 284 mm
Width with Stand: 389 mm
Depth with Stand: 200 mm
Weight (Approximate): 3.40 kg
Miscellaneous
Package Contents:

• PROLITE T1633MSC-B1 15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology
• Power Cable
• USB Cable
• HDMI Cable
• Quick Start Guide
• Safety Guide
• AC Adapter
• Cable Cover

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
