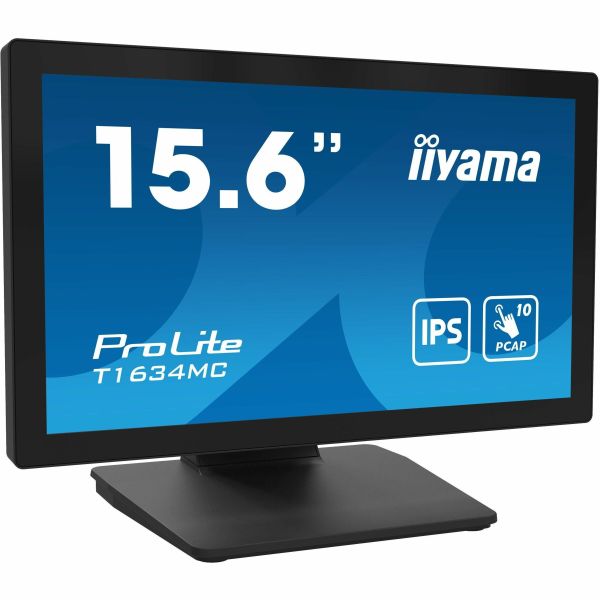

iiyama ProLite T1634MC-B1S Widescreen LED Touchscreen Monitor

Marketing Information

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a se...amless and accurate touch response for interactive behind-glass-retail applications.

IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH THROUGH-GLASS

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

IP65

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T1634MCB1S
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T1634MC-B1S
Product Name: ProLite T1634MC-B1S Widescreen LED Touchscreen Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 16"
Viewable Screen Size: 39.6 cm (15.6")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Pixel Pitch: 0.17900 mm x 0.17900 mm
Response Time: 25 ms
Response Time Details: 25ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• OSD/Power Lock
• On-screen Display (OSD)
• Dust Resistant
• Wide Viewing Angle
• ComfortView
• Ergonomic Design
• Cable Management
• Water Resistant
• Plug & Play
• Anti-fingerprint Coating

Horizontal Frequency: 30 kHz to 84 kHz
Stand Adjustments: Tilt
Glass Hardness: 7H
Bezel Color: Matte Black
Ingress Protection (IP) Rating: IP65
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.2 Million Colours
Native Contrast Ratio: 700:1
Brightness: 450 cd/m²
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Total Number of HDMI Ports: 1
Number of DisplayPorts: 1
Number of VGA Ports: 1
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Matte Black
Height: 230.5 mm
Width: 381 mm
Depth: 46 mm
Height with Stand: 285.50 mm
Width with Stand: 381 mm
Depth with Stand: 200 mm
Weight with Stand (Approximate): 3.40 kg
Miscellaneous
Package Contents:

• ProLite T1634MC-B1S Widescreen LED Touchscreen Monitor
• Power Cable
• Usb Cable
• HDMI Cable
• DP Cable
• AC Adapter
• Quick Start Guide
• Safety Guide

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
