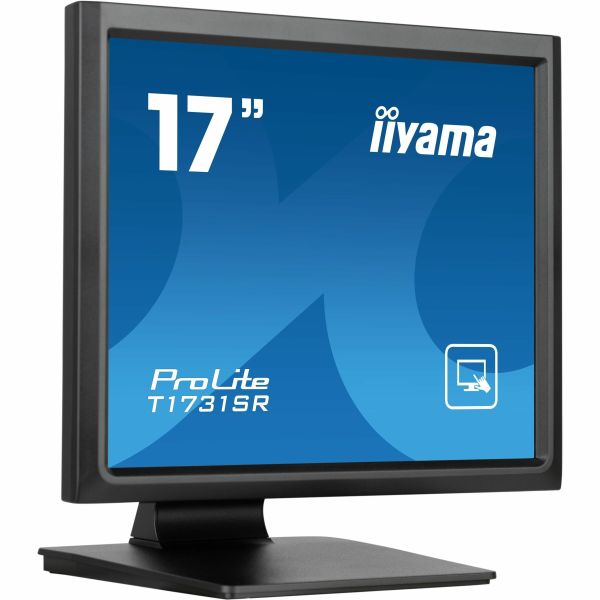

iiyama PROLITE T1731SR-B1S 17" Touchscreen with 5-wire Resistive Touch Technology

Marketing Information

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

TOUCH TECHNOLOGY - RESISTIVE

5-wi...re resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

VESA

VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T1731SRB1S
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T1731SR-B1S
Product Name: PROLITE T1731SR-B1S 17" Touchscreen with 5-wire Resistive Touch Technology
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 17"
Viewable Screen Size: 43.2 cm (17")
Screen Mode: SXGA
Panel Technology: Twisted nematic (TN)
Pixel Pitch: 0.26400 mm x 0.26400 mm
Response Time: 5 ms
Response Time Details: 5ms BTB (Black to Black)
Aspect Ratio: 5:4
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Plug & Play
• On-screen Display (OSD)
• Cable Lock Slot
• Cable Management
• OSD/Power Lock

Horizontal Frequency: 31.50 kHz to 80 kHz
Stand Adjustments: Tilt
Bezel Color: Matte Black
Ingress Protection (IP) Rating: IP54
Video
Maximum Resolution: 1280 x 1024
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: 5-wire Resistive
Multi-touch Screen: No
Number of Simultaneous Touchpoints: 1
Interfaces/Ports
DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of DisplayPorts: 1
Number of VGA Ports: 1
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 319 mm
Width: 387 mm
Depth: 59 mm
Height with Stand: 378 mm
Width with Stand: 387 mm
Depth with Stand: 239.50 mm
Weight (Approximate): 5.40 kg
Miscellaneous
Package Contents:

• PROLITE T1731SR-B1S 17" Touchscreen with 5-wire Resistive Touch Technology
• Power Cable
• USB Cable
• HDMI Cable
• Audio Cable
• DP Cable
• Quick Start Guide
• Safety Guide
• Cable Cover

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
