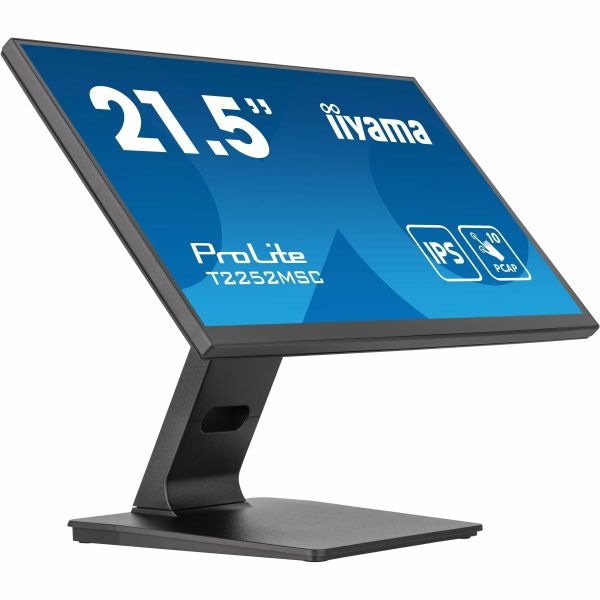

iiyama ProLite T2252MSC-B2 Widescreen LED Touchscreen Monitor

Marketing Information

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instor...e retail, POS and interactive presentations.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS TECHNOLOGY

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

BLUE LIGHT REDUCER

As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called "Blue light reduction" easily accessible through the monitor's OSD menu.

VESA

VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

SPEAKERS

This LED monitor is equipped with two stereo speakers.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T2252MSCB2
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T2252MSC-B2
Product Name: ProLite T2252MSC-B2 Widescreen LED Touchscreen Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Pixel Pitch: 0.24900 mm x 0.24900 mm
Response Time: 5 ms
Response Time Details: 5ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Wide Viewing Angle
• Edge-to-Edge Glass Design
• Ultra Slim
• Low Blue Light
• Eye-Care
• On-screen Display (OSD)
• OSD/Power Lock
• Plug & Play
• i-Style-Color
• Eco Mode
• Anti-fingerprint Coating

Horizontal Frequency: 30 kHz to 83 kHz
Stand Adjustments: Tilt
Glass Hardness: 7H
Bezel Color: Matte Black
Active Display Area (H x V): 478.60 mm x 260 mm
Controls: Contrast
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 225 cd/m²
Audio
Speakers: Yes
Number of Speakers: 2
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Number of DisplayPorts: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Operating Power Consumption: 11 W
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Bezel Finishing: Matte
Height: 266 mm
Width: 493.5 mm
Depth: 48.5 mm
Height with Stand: 361.50 mm
Width with Stand: 493.50 mm
Depth with Stand: 239.50 mm
Weight (Approximate): 4.50 kg
Miscellaneous
Package Contents:

• ProLite T2252MSC-B2 Widescreen LED Touchscreen Monitor
• Power Cable
• USB Cable
• HDMI Cable
• Quick Start Guide
• Safety Guide
• Cable cover

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
