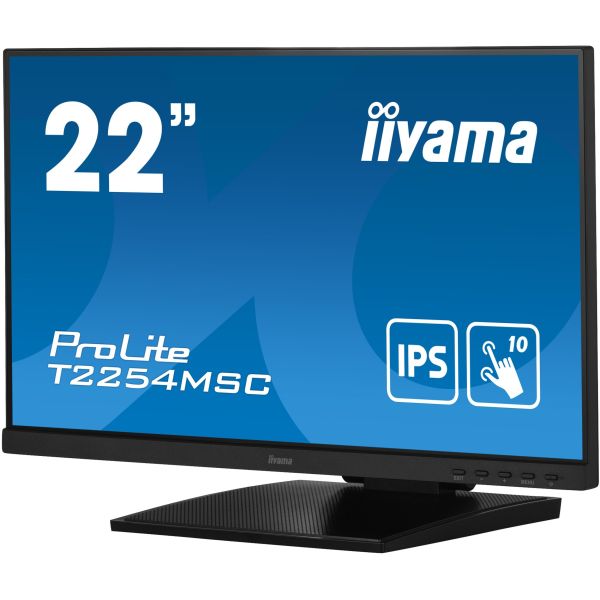

iiyama ProLite T2254MSC-B1AG Touchscreen LCD Monitor

Marketing Information

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2254MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2254MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

TOUCH T...ECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

VESA

VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T2254MSC-B1AG
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T2254MSC-B1AG
Product Name: ProLite T2254MSC-B1AG Touchscreen LCD Monitor
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Anti-glare
• Wide Viewing Angle
• Anti-reflective
• Ergonomic Design
• Narrow Bezel
• Plug & Play
• OSD/Power Lock
• On-screen Display (OSD)
• OverDrive
• Cable Lock Slot
• Blue Light Reduction
• Flicker-free

Horizontal Frequency: 30 kHz to 83 kHz
Stand Adjustments:

• Height
• Tilt

Bezel Color: Matte Black
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 250 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 2
Number of DisplayPorts: 1
Number of USB 3.0 Ports: 2
Built-in Devices
Built-in Devices: USB Hub
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 294 mm
Width: 488.5 mm
Depth: 47 mm
Height with Stand: 343 mm
Width with Stand: 488.50 mm
Depth with Stand: 238.50 mm
Weight (Approximate): 2.70 kg
Weight with Stand (Approximate): 4.90 kg
Miscellaneous
Energy Star: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
