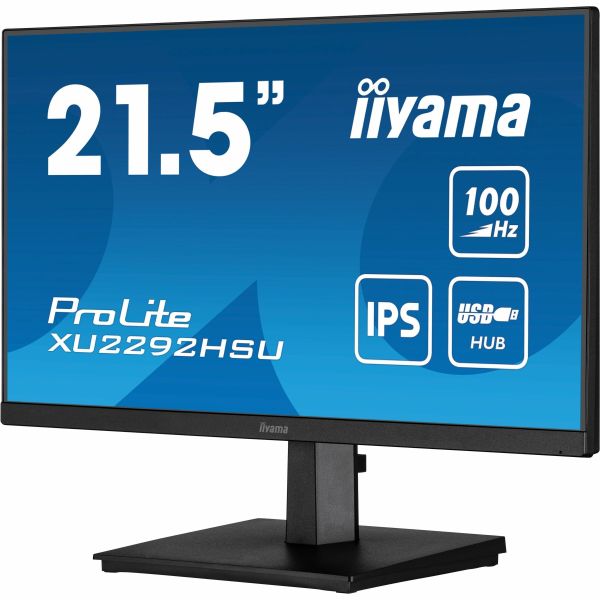

iiyama PROLITE XU2292HSU-B6 21.5" IPS technology panel with 100Hz refresh rate

Marketing Information

Stylish edge-to-edge design makes the ProLite XU2292HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides an instant, tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB 3.2 hub, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue for optimal user comfort, make this monitor a great choice for both multi-monitor configuration and office applications.

100HZ

A 100Hz refresh rate tr...anslates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SLIM LINE

Slim Line monitors feature a sleek bezel and are therefore particularly suitable for video wall or a multi-monitor set-up.

IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

FREESYNC™ TECHNOLOGY

AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XU2292HSUB6
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XU2292HSU-B6
Product Name: PROLITE XU2292HSU-B6 21.5" IPS technology panel with 100Hz refresh rate
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 400 µs
Response Time Details: 0.4ms MPRT
Aspect Ratio: 16:9
Pixel Pitch: 0.24800 mm x 0.24800 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• 3-sided Bezel Less
• Blue Light Reduction
• Flicker-free
• i-Style-Color
• On-screen Display (OSD)
• X-Res Technology
• Cable Lock Slot
• Cable Management
• Edge-to-Edge Glass Design
• Wide Viewing Angle

Horizontal Frequency: 30 kHz to 115 kHz
Stand Adjustments: Tilt
Active Display Area (H x V): 476.10 mm x 267.80 mm
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 100 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 250 cd/m²
Tearing Prevention Technology: FreeSync
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 4
Number of DisplayPorts: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Operating Power Consumption: 14 W
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Height: 384 mm
Width: 489.5 mm
Depth: 199.5 mm
Weight (Approximate): 3 kg
Miscellaneous
Package Contents:

• PROLITE XU2292HSU-B6 21.5" IPS technology panel with 100Hz refresh rate
• Power Cables
• USB Cables
• HDMI Cables
• Quick Start Guide
• Safety Guide

TCO Certified: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
