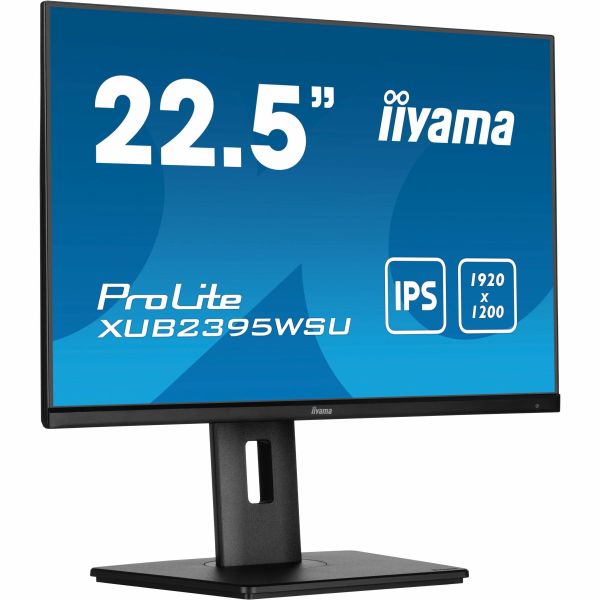

iiyama ProLite XUB2395WSU-B5 Widescreen LED Monitor

Marketing Information

The demanding data and application-heavy world needs a display that creates a more productive work place. With 1920 x 1200 resolution, the XUB2395WSU offers 11% more height with the same width as a Full HD display, which works much better for spreadsheets, word documents and browsing the Internet. The height adjustable stand with PIVOT function allows you to easily adjust the monitor position to your preferences and the IPS panel technology assures accurate and consistent colour reproduction with wide viewing angles.

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

HAS (150MM) + PIVOT

With a height... adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

FLICKER-FREE + BLUE LIGHT

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

ACR

Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB2395WSUB5
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB2395WSU-B5
Product Name: ProLite XUB2395WSU-B5 Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 23"
Viewable Screen Size: 57.2 cm (22.5")
Screen Mode: WUXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms GTG
Aspect Ratio: 16:10
Pixel Pitch: 0.20000 mm x 0.20000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Wide Viewing Angle
• Ergonomic Design
• Flicker-free
• Low Blue Light
• Eye-Care
• i-Style-Color
• On-screen Display (OSD)
• 6-axis Color Adjustment
• Display Data Channel/Command Interface (DDC/CI)
• Cable Lock Slot
• Cable Management

Horizontal Frequency: 48 kHz to 75 kHz
Stand Adjustments:

• Height
• Pivot
• Tilt
• Swivel

Active Display Area (H x V): 488.20 mm x 297.20 mm
Video
Maximum Resolution: 1920 x 1200
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 5,000,000:1
Brightness: 250 cd/m²
Tearing Prevention Technology: FreeSync
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Number of DisplayPorts: 1
Number of VGA Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Operating Power Consumption: 24 W
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Bezel Finishing: Matte
Height: 320.5 mm
Width: 499 mm
Depth: 43.5 mm
Height with Stand: 503.50 mm
Width with Stand: 499 mm
Depth with Stand: 209.50 mm
Compressed Height with Stand: 353 mm
Extended Height with Stand: 503.50 mm
Weight (Approximate): 4.50 kg
Miscellaneous
Package Contents:

• ProLite XUB2395WSU-B5 Widescreen LED Monitor
• Power Cable
• USB Cable
• DP Cable
• Quick Start Guide
• Safety Guide

TCO Certified: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
