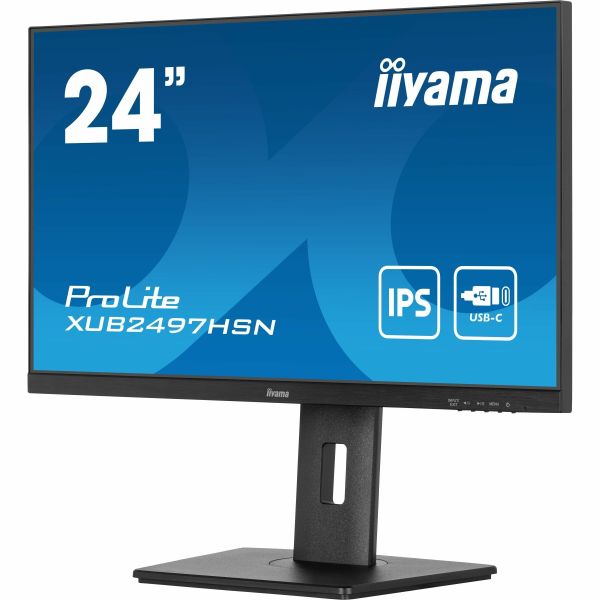

iiyama ProLite XUB2497HSN-B2 Widescreen LED Monitor

Marketing Information

24" IPS technology panel with USB-C dock and RJ45 (LAN)

Equipped with a USB-C dock connector, the XUB2497HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2497HSN allows you to easily adjust the screen position to your preferences.

USB-C Dock

The dock... allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Flicker-free + Blue light

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

HAS (150mm) + Pivot (rotation both sides)

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

Speakers and headphones

Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB2497HSN-B2
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB2497HSN-B2
Product Name: ProLite XUB2497HSN-B2 Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 1 ms
Response Time Details: 1ms MPRT
Aspect Ratio: 16:9
Pixel Pitch: 0.27500 mm x 0.27500 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• 3-sided Bezel Less
• Blue Light Reduction
• Flicker-free
• On-screen Display (OSD)
• i-Style-Color
• Eco Mode
• Kensington Lock
• Cable Management
• Ergonomic Design
• Wide Viewing Angle

Horizontal Frequency: 30 kHz to 110 kHz
Adjustable Stand: Yes
Stand Adjustments:

• Swivel
• Height
• Pivot
• Tilt

Active Display Area (H x V): 527 mm x 296.50 mm
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 100 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,300:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 300 cd/m²
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 1.4
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 4
Number of USB 3.2 Ports: 3
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 1
Number of USB 3.2 (Gen 1) Ports: 3
Built-in Devices
Built-in Devices: USB Hub
Power Description
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 20 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Height: 323 mm
Width: 538.5 mm
Depth: 47.5 mm
Height with Stand: 500 mm
Width with Stand: 538.50 mm
Depth with Stand: 209.50 mm
Compressed Height with Stand: 350 mm
Extended Height with Stand: 500 mm
Weight (Approximate): 5.30 kg
Miscellaneous
Package Contents:

• ProLite XUB2497HSN-B2 Widescreen LED Monitor
• Power Cable
• HDMI Cable
• USB-C Cable
• Quick start guide
• Safety guide

TCO Certified: Yes
Environmental Certification:

• TCO Certified
• Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
