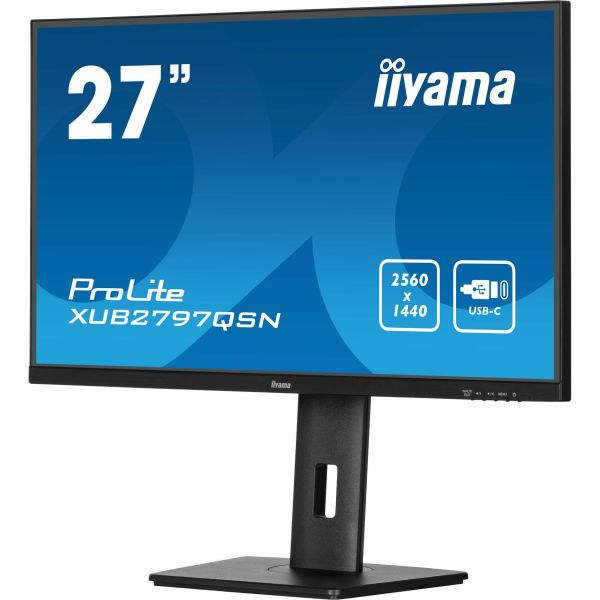

iiyama ProLite XUB2797QSN-B2 Widescreen LED Monitor

Marketing Information

27'' QHD IPS technology panel with USB-C dock and RJ45 (LAN)

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and br...ightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.

USB-C Dock

The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop to the USB C dock in the monitor.

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

QHD

With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Flicker-free + Blue light

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Speakers

This LED monitor is equipped with two high quality stereo speakers.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB2797QSN-B2
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB2797QSN-B2
Product Name: ProLite XUB2797QSN-B2 Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 27"
Viewable Screen Size: 68.6 cm (27")
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 1 ms
Response Time Details: 1ms MPRT
Aspect Ratio: 16:9
Pixel Pitch: 0.23300 mm x 0.23300 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable
Backlight Technology: LED
HDCP Supported: Yes
Features:

• 3-sided Bezel Less
• Digital Daisy Chain
• Blue Light Reduction
• Flicker-free
• i-Style-Color
• Eco Mode
• On-screen Display (OSD)
• Cable Lock Slot
• Cable Management
• Dual Monitor Support
• Wide Viewing Angle
• Ergonomic Design
• ComfortView

Horizontal Frequency: 30 kHz to 151 kHz
Adjustable Stand: Yes
Stand Adjustments:

• Swivel
• Height
• Pivot
• Tilt

Active Display Area (H x V): 596.70 mm x 335.70 mm
Video
Maximum Resolution: 2560 x 1440
Standard Refresh Rate: 100 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,300:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 2.0
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 5
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 1
Number of HDMI 2.0 Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 26 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Height: 364 mm
Width: 613.5 mm
Depth: 47.5 mm
Height with Stand: 550.50 mm
Width with Stand: 613.50 mm
Depth with Stand: 209.50 mm
Compressed Height with Stand: 400.50 mm
Extended Height with Stand: 550.50 mm
Weight (Approximate): 6.10 kg
Miscellaneous
Package Contents:

• ProLite XUB2797QSN-B2 Widescreen LED Monitor
• Power Cable
• HDMI Cable
• DP Cable
• USB-C Cable
• Quick Start Guide
• Safety Guide

TCO Certified: Yes
Application/Usage: Business
Environmental Certification: TCO Certified
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
